Benchtop Micro-XRF Spectrometer Systems

ATLAS from iXRF Systems

The benchtop micro-XRF spectrometer ATLAS manufactured and developed by iXRF Systems is the latest general-purpose Energy Dispersive X-Ray Fluorescence (EDXRF) system.

With the smallest X-ray spot in the industry at 5 μm, it has an optimized analysis speed without compromising accuracy.

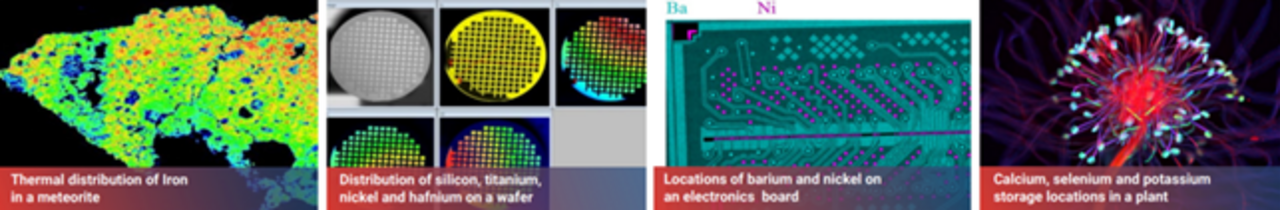

ATLAS provides a wide elemental mapping of elements from sodium (Na) through uranium (U) in the standard detection configuration or carbon (C) through uranium (U) in the Light Element (LE) detection configuration.

Features
  • Solid, liquid or powder raw samples can be analyzed
  • Large sample chamber volume
  • Spot size down to 5 μm with anti-halo optics
  • Ready to use all-in-one software for multiple applications
  • Unprecedented detector active area: up to 600 mm2 with 4 SDD detectors

Further information

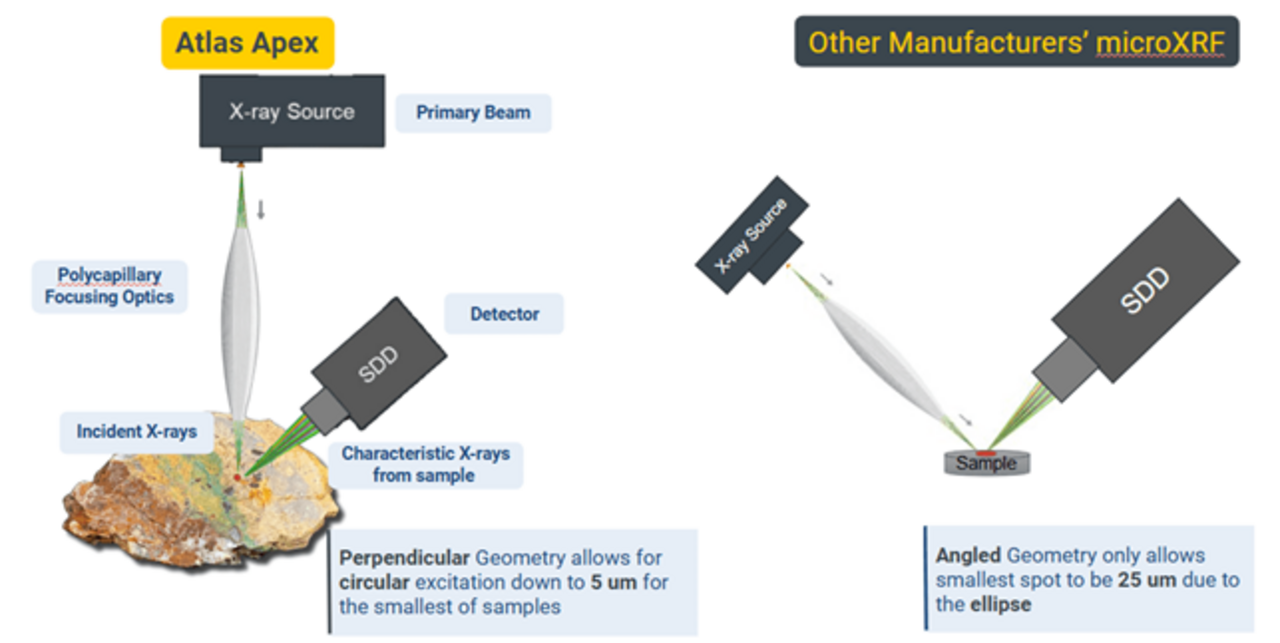

Designed to visualize and analyze a wide variety of sample types, ATLAS is suitable for multiple applications, with a powerful integrated software, the highest detector active area and an innovative perpendicular X-ray micro-spot tube geometry.

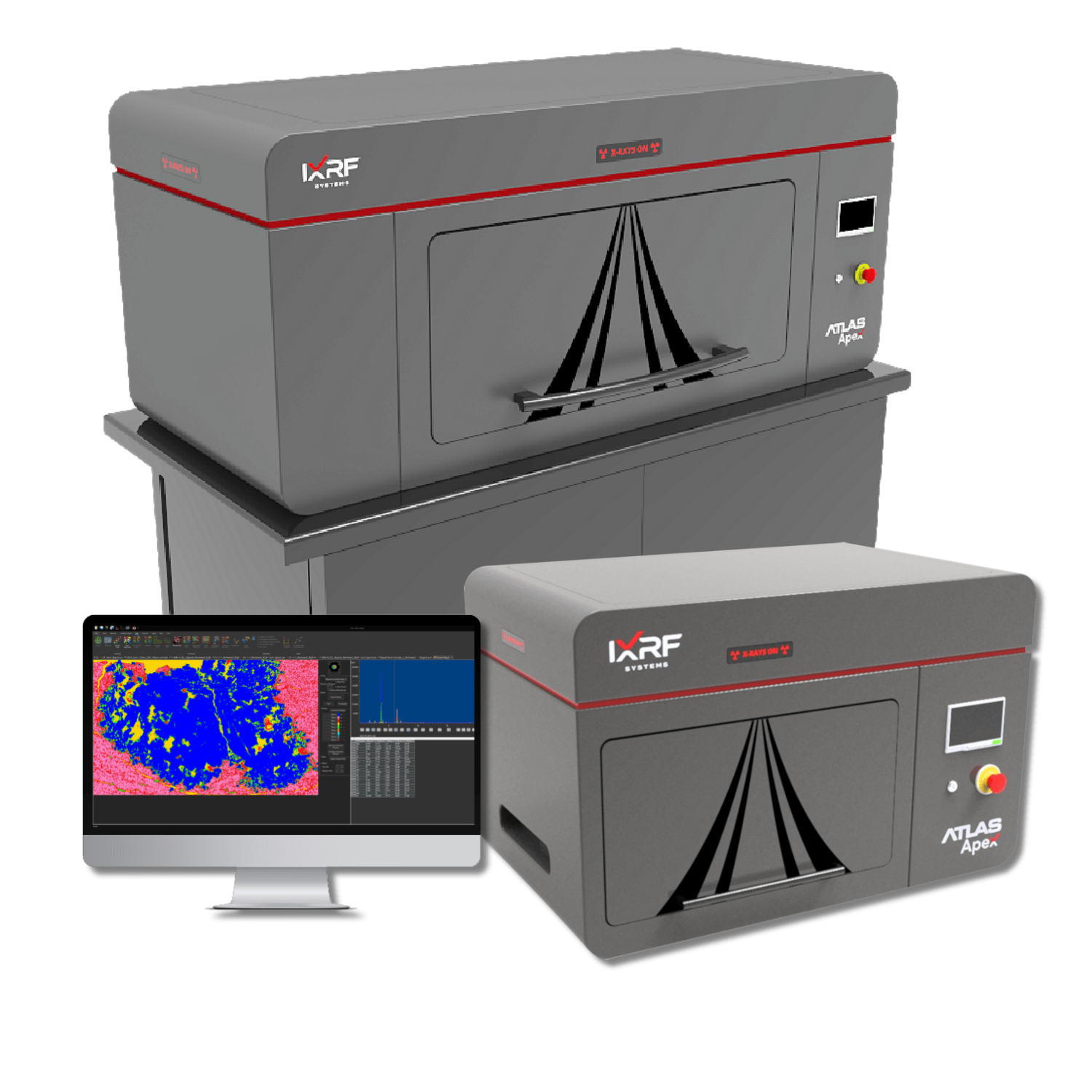

The ATLAS system is available in two different versions, X and M:

Atlas-X:

  • sample chamber size of 950x650x365mm
  • 600x300x150mm motorized X, Y, Z stage
  • secondary X-ray source up to 60 kV

Atlas-M:

  • sample chamber size of 508x457x254mm
  • 320x320x120mm motorized X, Y, Z stage
  • secondary X-ray source up to 40 kV

However, the maximum scanning speed for the two systems is unchanged, regardless of the stage, as well as the size of the micro-spot of the primary source and the speed of movement of the sample.

ATLAS micro-XRF system features the most voluminous sample chamber available on the XRF market, allowing for automation of more samples with a wide area-mapping capability. The instrument can measure the composition of a vast range of sample types, whether small or large, even or irregularly shaped. With its large high-speed stage, it supports 2D scan analysis of any kind of sample: solids, liquids, powders, thin-films and particles. The optional Light Element detection configuration confers also a superior light element (low-Z) sensitivity to the system.

Applications

Materials science
Geology and mineralogy
Pharmaceuticals
Life and environmental sciences
Forensic inspections and analysis
RoHS and WEEE compliance
Study of circuits and semiconductors (NDT and Failure Analysis)

Downloads

ATLAS micro-XRF Systems Flyer
Application report - Cement
Application report - Forensics
Application report - Geology
Application report - RoHS
Application report - Soils

Videos

ATLAS Micro-XRF spectrometer (µXRF)
ATLAS - Sample Positioning / Mapping
