Large area X-Ray Imaging detectors

WidePix from Advacam

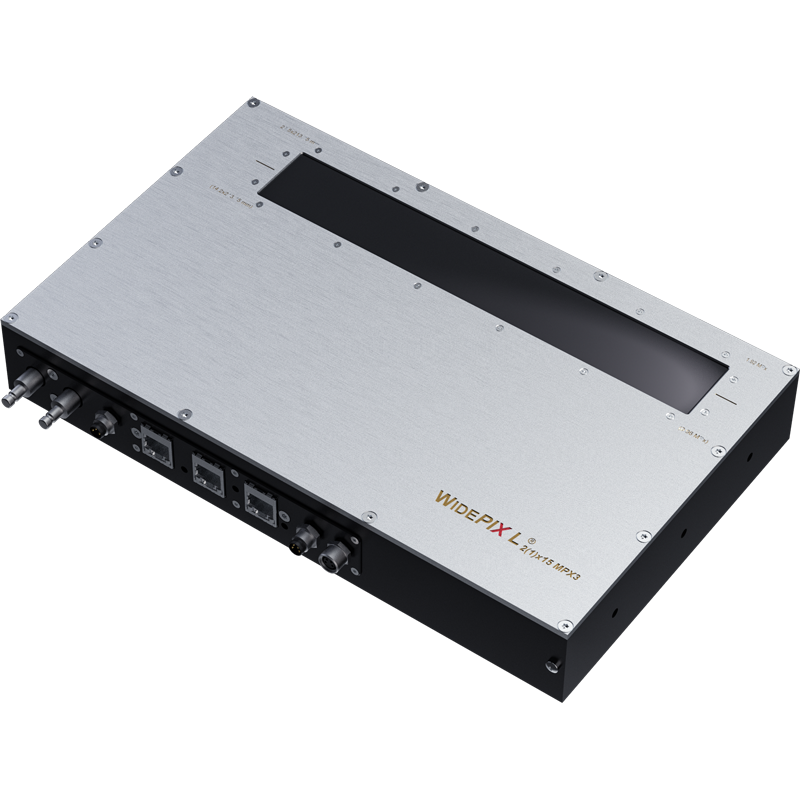

The WidePIX series from Advacam is based on Medipix3 technology and offers large-area, spectral X-ray imaging with seamlessly tiled sensor chips. Elongated models such as the WidePIX 2(1)×10 are ideal for TDI mode, where objects are moved during acquisition – perfect for inline inspections.

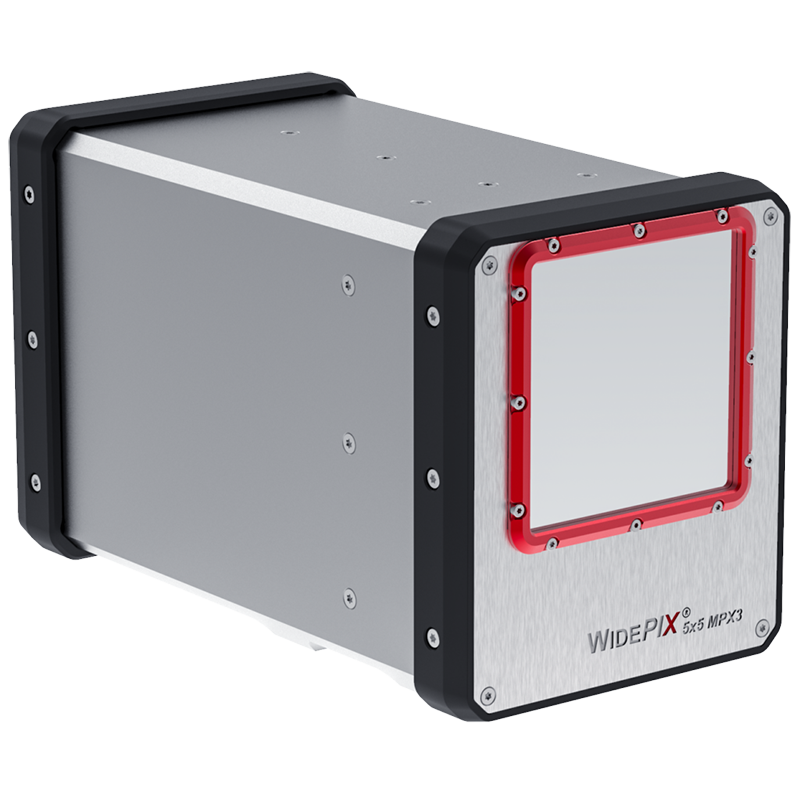

The WidePIX 5×5 combines 25 chips into a homogeneous, large imaging area and is particularly suited for applications such as material analysis, art documentation or digital pathology. With a pixel size of 55 µm, selectable Si or CdTe sensors, and resolutions of up to 512 × 3840 pixels (WidePIX L 2×15) or 1280 × 1280 pixels (WidePIX 5×5), the detectors deliver highly precise, spectrally differentiated images.

They operate in single-pixel or charge-summing mode and are controlled via USB or Ethernet with trigger I/Os – a powerful solution for research and industry.

Features

Medipix3 technology
Event detector
Pixel size 55 µm
Hardware-based time delayed integration (TDI) mode
Counting in Single Pixel Mode (SPM) or Charge Summing Mode (CSM)
Up to 2 energy thresholds

Further information

	WidePIX L	WidePIX 5×5
Readout chip	Medipix3	Medipix3
Sensor material	Si or CdTe	CdTe
Sensor thickness	300 µm (Si) 1 mm (CdTe)	1 mm
Number of pixels	2(1)×5: 512 (256) × 1280 px 2(1)×10: 512 (256) × 2560 px 2(1)×15: 512 (256) × 3840 px	1280 × 1280 px
Pixel size	55 × 55 µm	55 × 55 µm
Sensitive area	2(1)×5: 28 (14) × 70 mm 2(1)×10: 28 (14) × 140.8 mm 2(1)×15: 28 (14) × 211.2 mm	70 × 70 mm
Frame rate	up to 170 (1×5/10 tiles), up to 80 (2×5/10 tiles) frames/s 50 (1×15 tiles) and 20 (2×15 tiles) frames/s	up to 170 fps
Energy resolution	0.7–2.0 keV (Si) 1.2–3.6 keV (CdTe)	—
Minimum detectable energy	6 keV (Si) 8 keV (CdTe)	8 keV
Interface	1× 1 Gbit/s Ethernet 2× 1 Gbit/s Ethernet 3× 1 Gbit/s Ethernet	5× 1 Gbit/s Ethernet
