IM7c

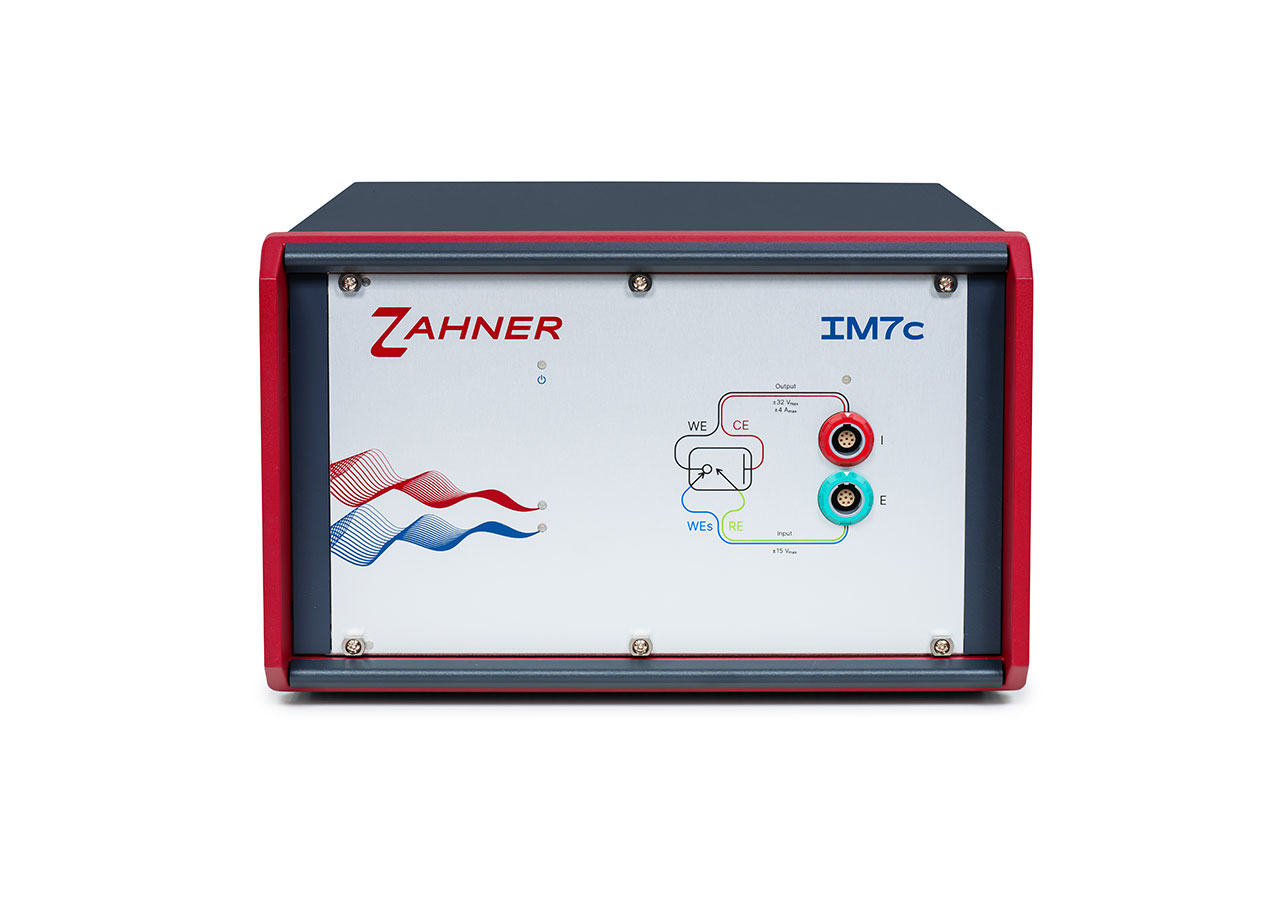

Potentiostat / GalvanostatThe IM7c is a compact potentiostat / galvanostat including a frequency response analyser. It offers 32 bit DC resolution and 24 bit AC resolution across 12 different current ranges, which ensure exceptional accurate and precise measurements. The ZENNIUM XC combines compact design with the high-end measurements hardware.
A list of main electrochemical measurements possible with the ZENNIUM XC potentiostat is provided here.
- DC voltage ranges: ±5 V and ±14 V
- Current up to ±2 A over 12 current ranges
- EIS frequency range from 10 µHz to 5 MHz
- AC amplitude of 0 - 6 V or 0 - 2 A for EIS

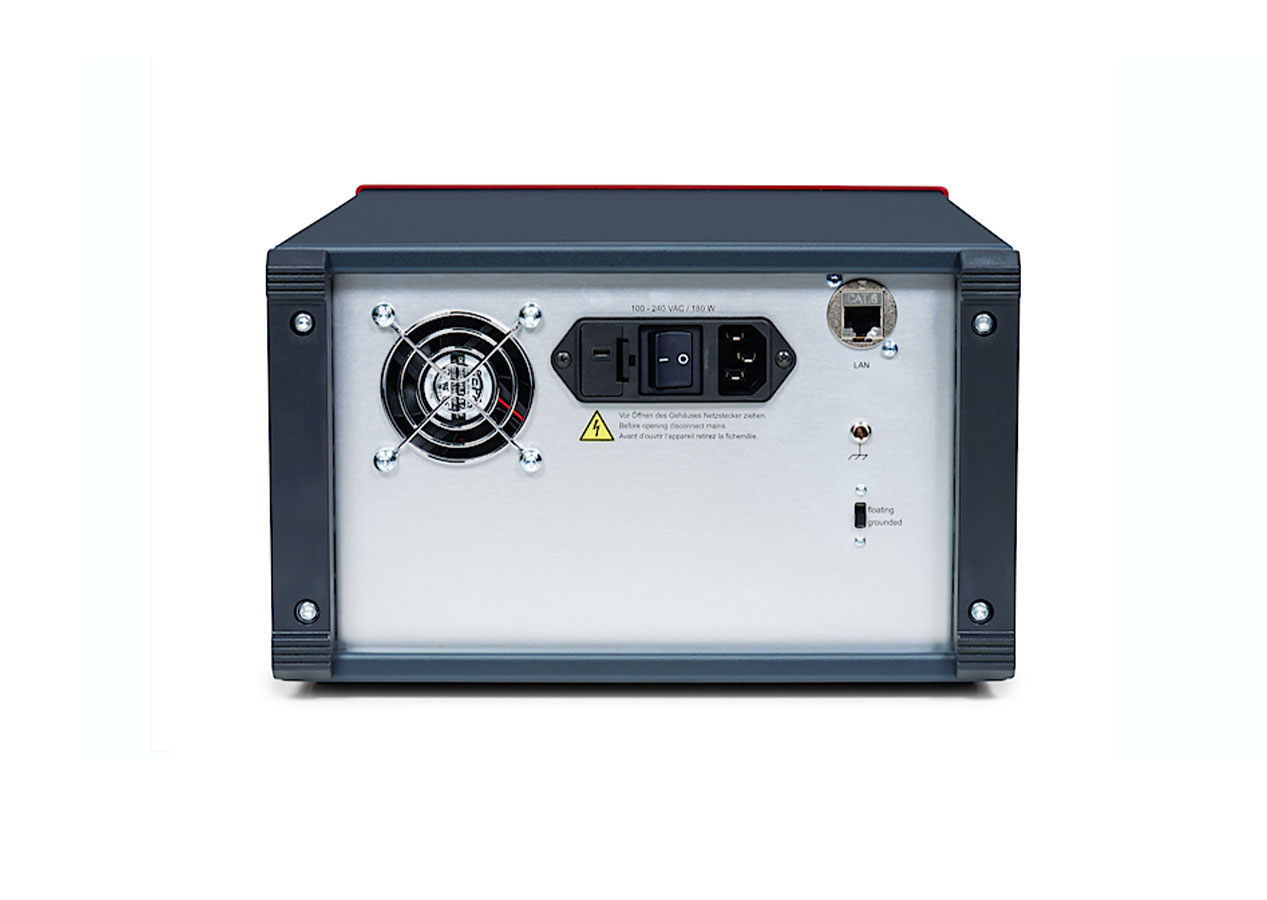

- Switchable floating / grounded mode

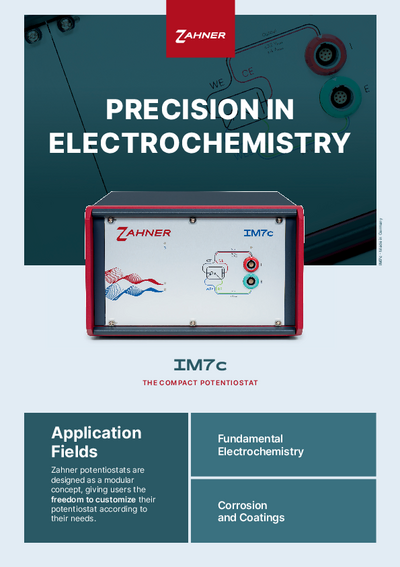

Downloads
Contact
Jean-Paul
Gaston
Product Manager
Woollam Spectroscopic Ellipsometer - Zahner Potentiostats - QCM-D & MP-SPR BioNavis
| 01 69 19 49 49 | |
| Write e-mail |
Jean-Paul
Gaston
The IM7 is a modular high-end potentiostat / galvanostat including a frequency response analyzer (FRA). The ZENNIUM PRO potentiostat offers 32 bit DC resolution and 24 bit AC resolution across 12 ...
The IM7x is a modular potentiostat / galvanostat including a frequency response analyzer (FRA). The IM7x potentiostat offers 32 bit DC resolution and 24 bit AC resolution across 12 different current ...
Zahner Lab is Zahner’s new electrochemical measurement software designed to control the IM7 potentiostat and support a broad range of electrochemical measurements. The user experience is highly ...
