Vertex.One

Potentiostat / Galvanostat

The Vertex.One is an entry-level potentiostat/galvanostat/ZRA with an optional impedance analyzer. An optional True Linear Scan module can also be integrated. The low cost, the floating mode operation and the wide range of specifications make the Vertex.One ideal for many applications including batteries, sensors, corrosion...

Features

Current compliance: ±100mA
Maximum output voltage: ±21V
Option FRA/EIS: 10µHz to 250kHz
Option: True Linear scan module

Further information

Applications:

Linear Scanning Voltammetry (LSV)
Cyclic voltammetry
Chronoamperometry
Chronopotentiometry
AC Voltammetry
Differential pulse voltammetry
Square wave voltammetry
Normal pulse voltammetry
Rotating disk/ring-disk electrode (RDE/RRDE)
Polarography
Coulometry
Electrochemical noise test
Electrochemical Impedance spectroscopy
Corrosion

Options:

Ivium offers a wide range of electrochemical options to extend the use of your Potentiostat/Galvanostat such as:

Electrochemical multiplexer
Bipotentiostat
Power Boosters
Peripheral port interface
True linear scan option
Fast scan option
Programmable light source

IviumSoft:

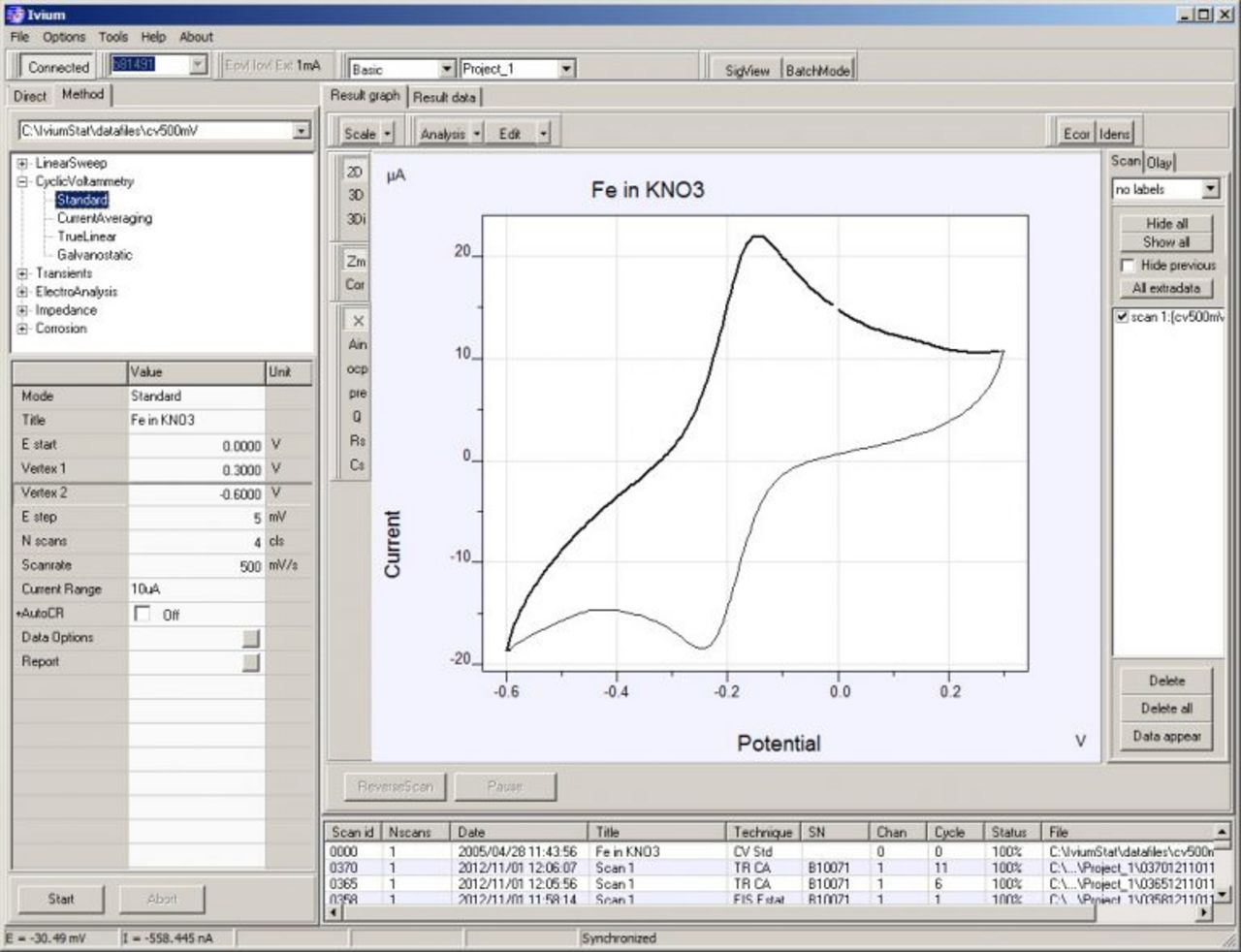

« IviumSoft » is a software developed to control Ivium potentiostats via USB port. The software includes several operating modes suitable for all research applications in order to satisfy both the easy-to-use requirement of the beginner, and the more demanding requirements of the advanced user. IviumSoft allows a quick data management and analysis. Data is automatically saved and easily exported at the end of each measurement. The software is compatible with Windows 8/10/11 and can be controlled from LabVIEWTM, C++, Delphi, etc. IviumSoft is provided for free with each instrument.

More information about IviumSoft
