Compact Handheld X-ray Sources for Portable XRF and Imaging – MAGNUM Series
From MoxtekMoxtek handheld X-ray sources are engineered for portable XRF and compact imaging instruments requiring stable output, low power consumption, and minimal weight. The MAGNUM and ULTRA-LITE MAGNUM series combine a grounded-anode monoblock design with excellent spectral purity, small focal spot sizes, and short sampling times — enabling fast, accurate analysis in portable and battery-powered devices.
- Compact and lightweight designs for handheld instruments
- High X-ray output with low power consumption
- Stable spectral performance across operating voltages
- Small focal spot for high-resolution measurements
- Designed for close coupling of tube and detector
- Available in multiple target materials for specific XRF applications
Further information
Moxtek handheld X-ray sources are designed specifically for portable analytical devices such as handheld XRF spectrometers, security tools, and compact imaging systems. Their monoblock architecture integrates the tube and high-voltage supply into a single lightweight unit, reducing system complexity and enabling prolonged battery operation.
The MAGNUM 50 kV monoblock is a small, low-power reflection tube delivering stable output, low spectral contamination, and improved measurement precision. The grounded-anode configuration supports very short spot-to-object distances and high geometric magnification, making it attractive for both XRF and radiographic applications.
The ULTRA-LITE MAGNUM 50 kV is the smallest and lightest source available from Moxtek, providing up to 4 W of power while maintaining excellent stability (<1% RSD). Its low mass significantly reduces the overall weight of handheld instruments and improves ergonomics.
Both product lines support a range of target materials — such as Ag, W, Rh, Pd, and Mo — enabling optimized excitation conditions for different elemental analysis requirements. Their efficient designs lead to short sampling times, stable long-term operation, and exceptional reliability in the field.
Models
MAGNUM 50 kV Monoblock X-ray Source
- Up to 4 W power
- Small focal spot (~400 μm)
- Integrated shielding
- Ideal for handheld XRF and compact imaging

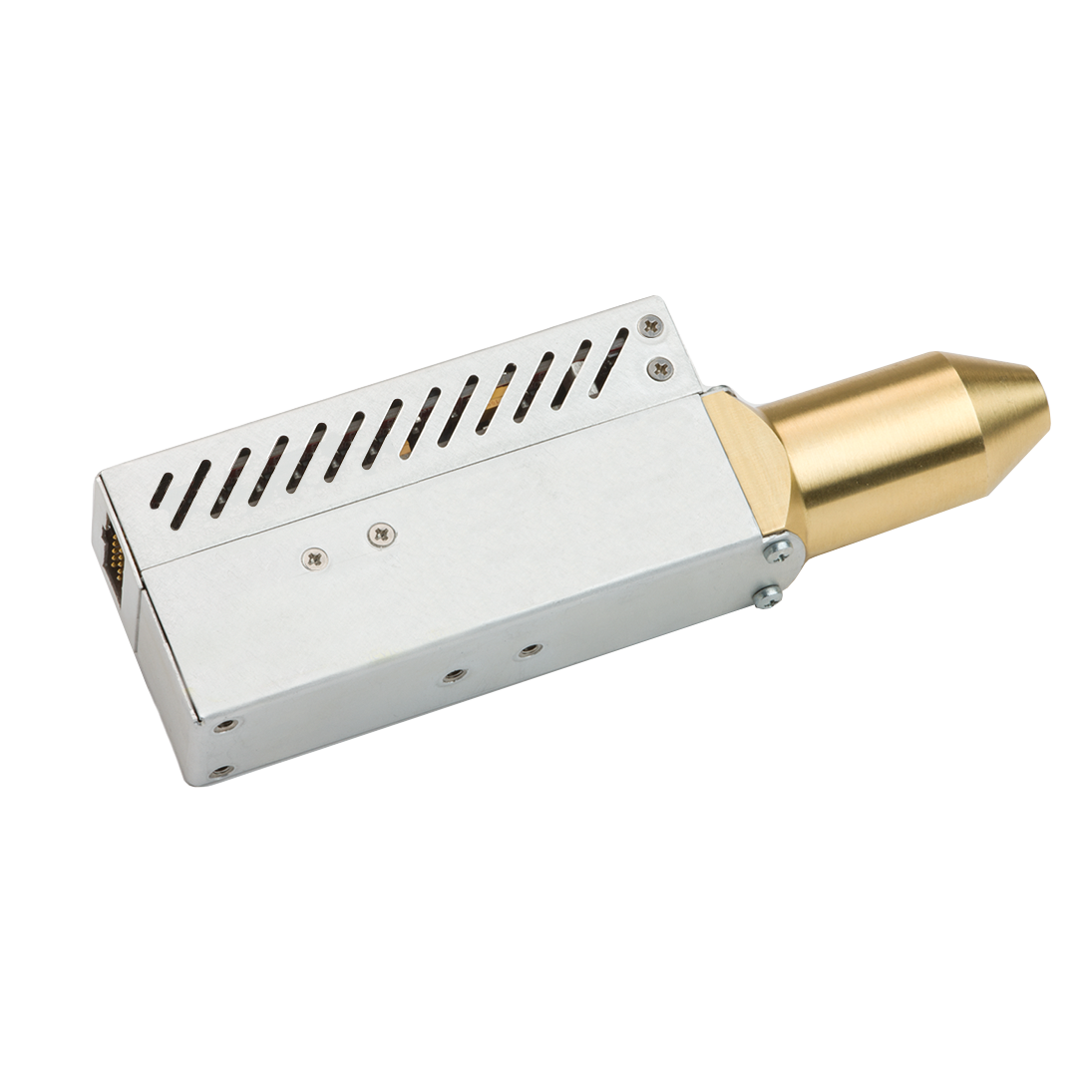

ULTRA-LITE MAGNUM 50 kV / 4 W X-ray Source
- Smallest and lightest model
- Highly stable output (<1% RSD)
- Multiple target materials available
- Designed for ultra-compact instruments
Specifications
MAGNUM 50 kV Monoblock
| Tube type | Metal-ceramic |
| Ambient temperature | –10 to +50 °C |
| Storage temperature | –25 to +85 °C |
| Cooling | Air |
| HV insulation | Silicone potting |
| Weight | ~350 g |
| Available targets | Ag, W, Rh |
| HV polarity | Grounded anode |
| Voltage range | 4 to 50 kV |
| Beam current | 0 to 0.200 mA |
| Maximum power | 4.0 W |
| Focal spot | ~400 μm |
| Window | Beryllium, 0.25 mm |
| Input power | 6–12 VDC |
| Focus-to-object distance | 2.2 mm |
| Warranty | One year |
ULTRA-LITE MAGNUM 50 kV / 4 W
| Tube type | Metal-ceramic |
| Ambient temperature | –10 to +60 °C |
| Storage temperature | –30 to +85 °C |
| Cooling | Conduction |
| Weight | 250 g (typical) |
| Available targets | W, Rh, Ag, Pd, Mo |
| HV polarity | Grounded anode |
| Voltage range | –4 to –50 kV |
| Beam current | 5 to 200 μA |
| Total power | 4.0 W |
| Focal spot | 500–800 μm FWHM |
| Stability | < 1.0% RSD |
| Window | Beryllium |
| Input power | 6–18 VDC |
| Warranty | 1 year / 2000 hours |
Applications
Handheld XRF
- Metal and alloy sorting
- Mining and geology
- Environmental analysis
- Lead-in-paint inspection
- Regulatory compliance (RoHS/WEEE)
- Art and archaeometry
- General materials identification
Imaging
- Medical R&D and small animal imaging
- Security inspection
- Radiographic imaging
- Portable NDT tools
Downloads
