High Performance Benchtop X-ray Sources for XRF, XRD, and Imaging – MAGPRO Series
from MoxtekThe MAGPRO Series combines high power, compact design, and stable long-term performance for benchtop XRF, XRD, and imaging systems. With up to 12 W continuous power and operating voltages of 50 kV or 60 kV, these metal-ceramic X-ray sources deliver high photon flux, excellent measurement precision, and outstanding reliability in both portable and stationary instruments.
- Compact, rugged metal-ceramic X-ray source
- High and stable X-ray output for short sampling times
- Small focal spot for precise imaging or XRF
- Multiple target materials available (Ag, Rh, W)
- Grounded-anode design for easy detector coupling
- Integrated radiation shielding
- Ideal for benchtop or portable analytical instruments
Further information
Moxtek’s MAGPRO Series is engineered for analytical and imaging applications requiring high X-ray flux, continuous operation, and robust thermal stability. Both the MAGPRO 50 kV and MAGPRO 60 kV units deliver 12 W continuous power, suitable for extended duty cycles in laboratory, industrial, or portable benchtop instruments.
A metal-ceramic tube design and grounded-anode configuration allow close coupling to the detector and improve measurement precision, especially for heavy elements in XRF. The small focal spot (typically ~500 μm FWHM) enables high spatial resolution in imaging applications, while the optional 125 μm or 250 μm beryllium windows support different transmission needs.

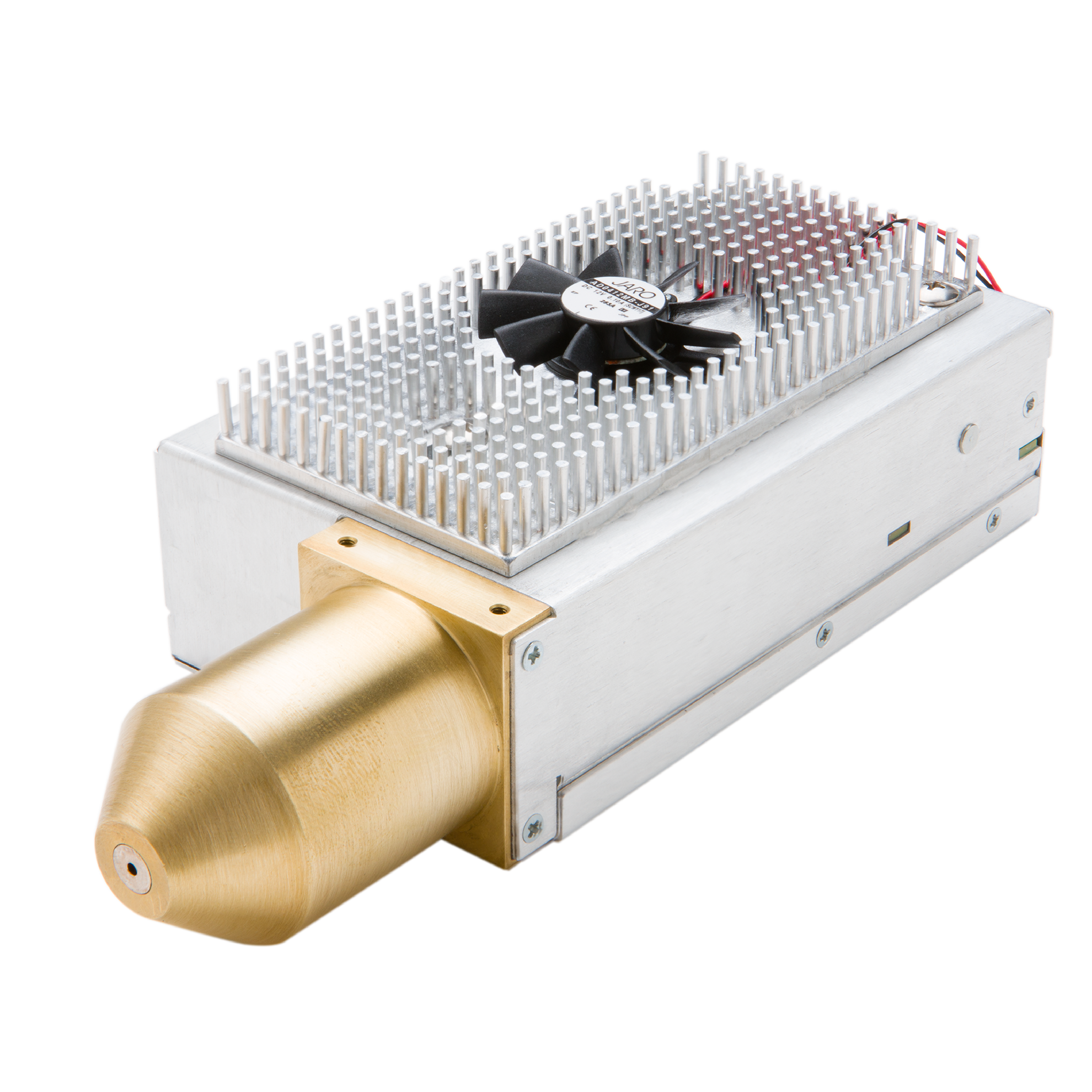

MAGPRO sources are air-cooled and lightweight, making integration simple even in compact instruments. Their stable output supports low detection limits and short acquisition times, while multiple communication protocols and target materials allow customization for specific analytical requirements.
Models
- Transmission anode
- Operating voltage: –6 kV to –50 kV
- Beam current: 50–1000 µA
- Available targets: Ag, Rh, W
- Beryllium windows: 125 or 250 µm
- Transmission anode
- Operating voltage: –6 kV to –60 kV
- Beam current: 70–1000 µA
- Available targets: W
- Beryllium windows: 125 or 250 µm
Specifications
Mechanical Specifications
| Tube type | Metal-ceramic |
| Operating temperature | –10 to +50 °C |
| Storage temperature | –30 to +85 °C |
| Cooling | Forced air |
| Weight | ~1100 g (50 kV) / ≤900 g (60 kV) |
| Available targets | Ag, Rh, W (50 kV) / W (60 kV) |
X-ray Tube Characteristics — MAGPRO 50 kV
| Anode type | Transmission |
| HV polarity | Grounded anode |
| Voltage range | –6 to –50 kV |
| Beam current | 50–1000 µA |
| Continuous power | 12 W |
| Focal spot | ~500 μm FWHM |
| Window | 125 or 250 μm Be |
| RoHS | RoHS 3 compliant |
| Warranty | 1 year / 2000 hours |
X-ray Tube Characteristics — MAGPRO 60 kV
| HV polarity | Grounded anode |
| Voltage range | –6 to –60 kV |
| Beam current | 70–1000 µA |
| Total power | 12 W |
| Focal spot | ~500 μm FWHM |
| Window | 125 or 250 μm Be |
| Radiation leakage | 2 mR/h at 50 mm |
| Input power | 24 VDC, 1.1 A |
| Warranty | 1 year / 2000 hours |
Applications
XRF
- Elemental composition analysis
- Metal and alloy sorting
- Residual stress and thickness gauging
- Scrap metal sorting
XRD
- Powder diffraction
- Residual stress analysis
Imaging
- Food inspection
- Radiographic testing (NDT)
- Portable imaging systems

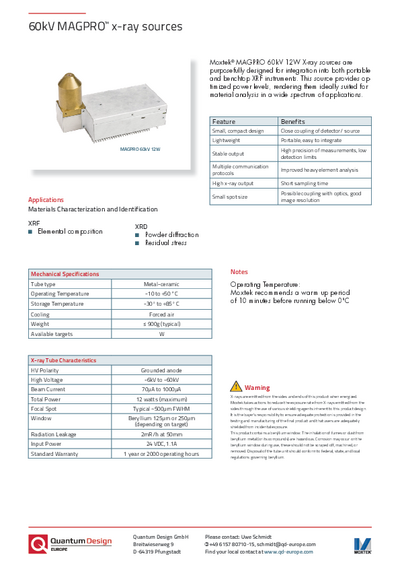

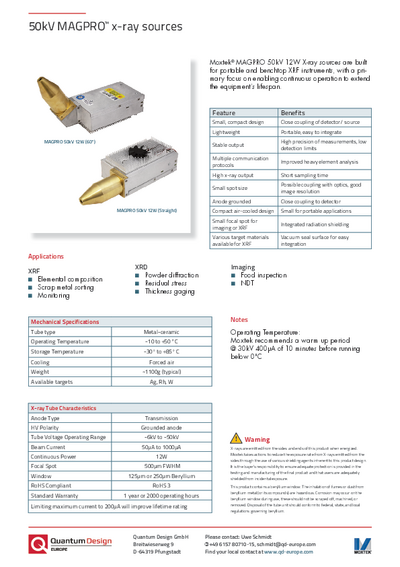

Downloads
