Solar simulators

from Quantum Design

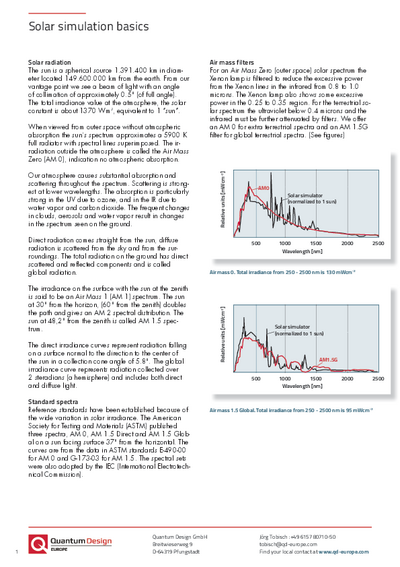

High pressure Xe arc lamps make excellent artificial sources to simulate sunlight. The high color temperature of the xenon lamps (6050 to 6350 K) is a close match to the solar temperature. This results in similar spectra in the UV and VIS although the lamp has some Xe emission lines in the near IR. The Xe lamp spectrum must be filtered to match various atmospheric conditions. Our simulators include filters to tailor the spectrum and give good matching to standard spectra. The matching is better in the UV and VIS than in the IR.

Models

25 mm Ø Solar simulator

LS0106 Full spectrum solar simulator, AM1,5G filter, 90° beam turner, 25 mm illuminated area, including lamp housing, lamp, power supply, cables and adapters needed for a proper operation.
Shutter (optional)
LSZ158	Manual shutter, condenser Ø 25/35 mm
LSZ166	Electronic shutter with driver, condenser Ø 25/35 mm
LSZ165	Shutter control software and USB relais with modi: manual - count down - interval switching and software development kit (C++, VB, LabView)
Accessories
LS0042 (optional)	Si reference cell
LSB521	Replacement lamp, 150 W Xenon, ozone free

40 mm Ø Solar simulator

LS0306 Full spectrum solar simulator, AM1,5G filter, 90° beam turner, 40 mm illuminated area, including lamp housing, lamp, power supply, cables and adapters needed for a proper operation.
Shutter (optional)
LSZ159	Manual shutter, condenser Ø 50 mm
LSZ167	Electronic shutter with driver, condenser Ø 50 mm
LSZ165	Shutter control software and USB relais with modi: manual - count down - interval switching and software development kit (C++, VB, LabView)
Accessories
LS0042 (optional)	Si reference cell
LSB530	Replacement lamp, 300 W Xenon, ozone free

51x51 mm² Solar simulator

LS0806 Full spectrum solar simulator, with integrated electronic shutter, AM1,5G filter, 90° beam turner, 51x51 mm² illuminated area, including lamp housing, lamp, power supply, cables and adapters needed for a proper operation.
LSZ165 (optional)	Shutter control software and USB relais with modi: manual - count down - interval switching and software development kit (C++, VB, LabView)
LS0042 (optional)	Si reference cell
LSB551	Replacement lamp, 1000 W Xenon, ozone free

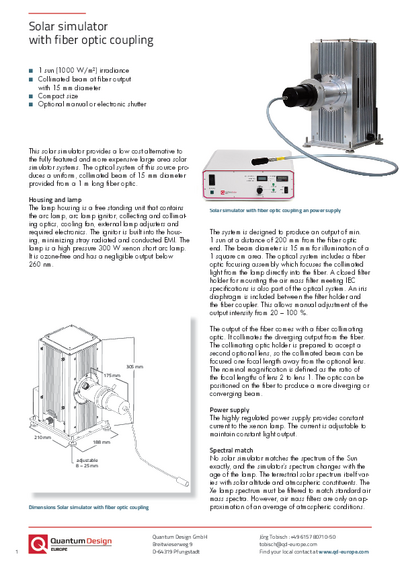

Solar simulator with fiber optic coupling

LS0400 Full spectrum solar simulator, with AM1,5G filter and fiber optic coupling, 15 mm illuminated area, including lamp housing, lamp, power supply, cables and adapters needed for a proper operation.
Shutter (optional)
LSZ158	Manual shutter, condenser Ø 25/35 mm
LSZ166	Electronic shutter with driver, condenser Ø 25/35 mm
LSZ165	Shutter control software and USB relais with modi: manual - count down - interval switching and software development kit (C++, VB, LabView)

LSB530	Replacement lamp, 300 W Xenon, ozone free
