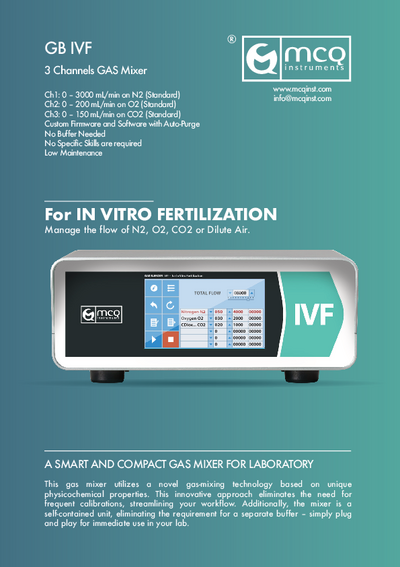

Gas Mixer for In Vitro Fertilization
The GB IVF is a compact and fully automated gas mixer, specifically designed for in vitro fertilization (IVF) laboratories. It enables precise mixing of CO₂, N₂, and O₂ to create stable and accurate gas environments required for embryo culture and gamete incubation.
Thanks to its plug & play design, it integrates seamlessly with existing incubators and laboratory setups, eliminating the need for premixed gas cylinders. It ensures high repeatability, flexibility, and safety for critical IVF applications.
- Auto-Purge mixing technology of CO₂, N₂, and O₂
- Ready-to-Use System – No Buffer Cylinder Required
- No specific skills are required
- High accuracy and repeatability
- Easy Maintenance: just recalibrate it once a year
- Broad Integration: ProfiBus, ModBus, Matlab Simulink, Python Library supplied
Specifications
| Parameter | Value |
| Number of channels | 3 (CO₂, N₂, O₂) |
| Flow rate range | Ch1: 0 – 3000 mL/min on N2 (Standard) Ch2: 0 – 200 mL/min on O2 (Standard) Ch3: 0 – 150 mL/min on CO2 (Standard) |
| Interface | 3.5” Touchscreen + USB, RS-485 |
| Accuracy | N2, 20 ºC, 101.325 kPa (1 atm): 5-100% FS: 1% of SP < 5% FS: 0,2% of FS |
| Repeatability | 0,10% of reading |
| Power supply | 24 VDC |
| Dimensions (W x H x D) | 260 x 105 x 205 mm |
| Weight | ~2.5 kg |
Applications
- In vitro fertilization (IVF) laboratories
- Embryo culture and gamete incubation
- CO₂ / N₂ / O₂ controlled atmospheres
- Research and clinical settings
Downloads
Videos
Getting Started - Gas Blender for IVF - MCQ Instruments
