Scanning NV (Nitrogen-Vacancy) Microscope

ProteusQ™ from Qnami

Qnami ProteusQ is a complete quantum microscope system. It is the first scanning NV (nitrogen-vacancy) microscope for analyzing magnetic materials at the atomic scale. By combining NV Magnetometry and Scanning Probe Microscopy techniques onto a single platform, Scanning NV Magnetometry allows the simultaneous acquisition of the sample’s topography and its surface magnetic fields with nanoscale resolution.

Features

Ultra-low drift, closed loop scanners
Stable optical design
Fast and safe tip exchange
Easy near-field antenna approach
Single spin quantum sensor
Dedicated high frequency electronics
Optically Detected Magnetic Resonance spectroscopy
Optional high-frequency pulsing capabilities

Further information

While the probe’s radius of curvature determines the lateral resolution for the topography image, it is the distance between the NV centre and the sample surface that determines the lateral resolution for the magnetic image.

The Qnami ProteusQ comes with state-of-the-art electronics and software. Its flexible design allows for future adjustments and scaling, expansion, and capability upgrades. The proprietary technology of Qnami’s quantum microscope provides high-precision images for you to see directly the most subtle properties of your samples and the effect of microscopic changes in your design or fabrication process.

Move fast from a sample preview to a detailed analysis:

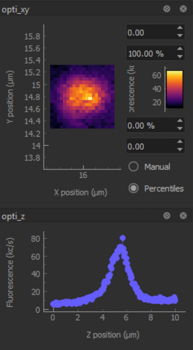

LabQ Software

Built upon the open-source Qudi framework, the LabQ software intuitively guides you through the different measurement modes so that you get the answers you need as quickly as possible.
