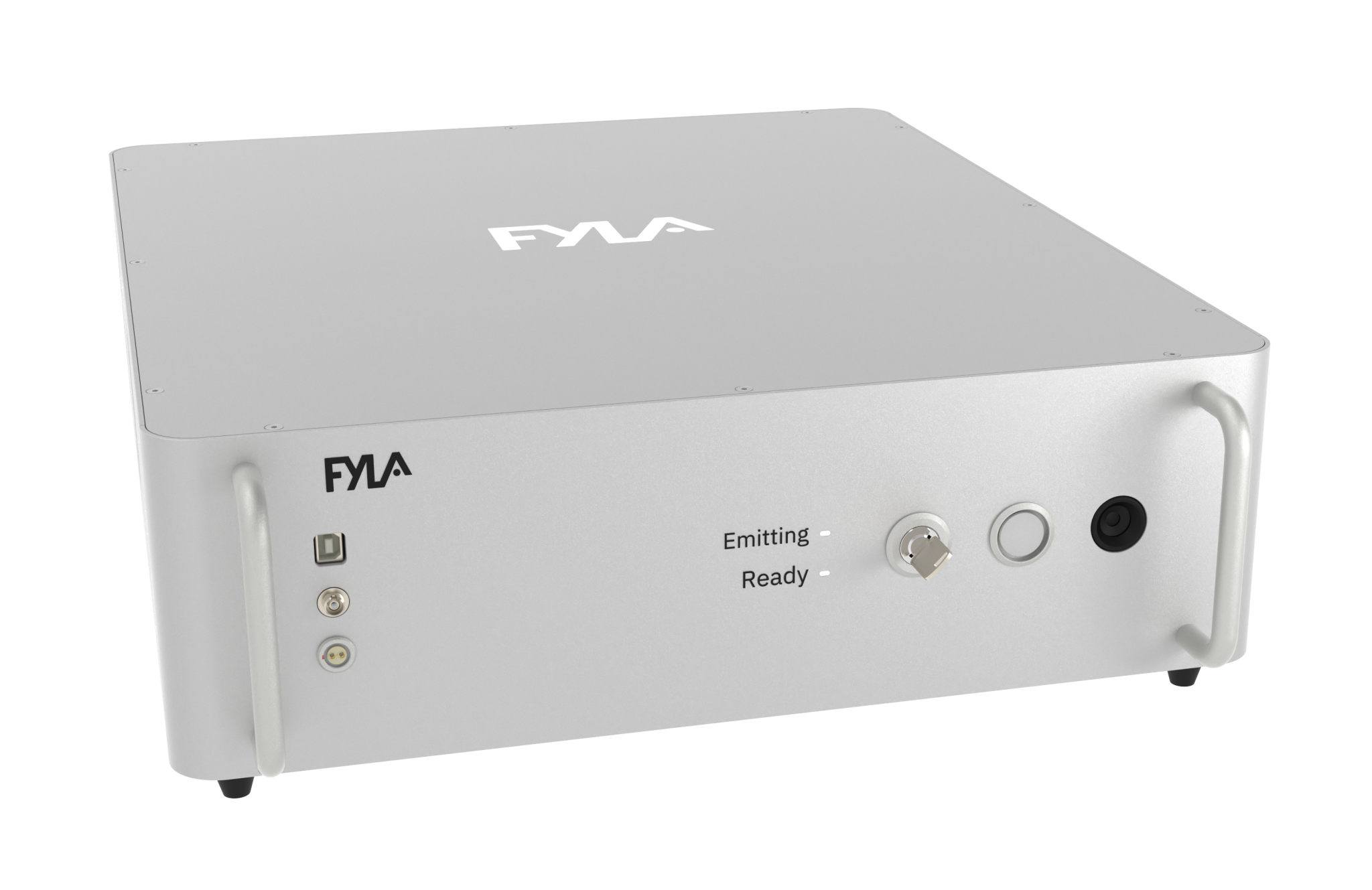

Supercontinuum Fiber Laser with Ultra Flat Spectrum

Horizon from Fyla

The Horizon Supercontinuum Fiber Laser is a cutting-edge optical source designed to redefine performance in spectroscopy and imaging. With an ultra-flat spectrum, free of spurious spectral peaks, it spans an impressive spectral range of 450 and 2300 nm.

With its spatial coherence, broad spectral coverage and spectral flatness, Horizon outperforms traditional supercontinuum sources

Ideal for advanced scientific and industrial applications, including fluorescence lifetime imaging and beyond, where consistent, high- quality illumination is critical. Whether in research or industrial environments, Horizon empowers users with a robust, high-performance solution for their optical needs.

Features

SPECTRAL RANGE: 450-2300 nm
AVERAGE POWER: >3000 mW
Visible Range (450-750 nm) Average Power: ≥ 250 mW
Ultra Flat Spectrum
Pulse Duration < 10 ps @ 1060 nm | < 200 ps full spectrum (estimated value)
Outstanding Power Stability

Further information

Optical Spectrum

Specifications

Technical specifications

Repetition Rate	80 MHz
Power Stability	<0,5 % (std. dev.)
Polarization	Unpolarized
Output Port	Single Mode / 1.0 m (customizable)
Optical Output	Collimated (in the range 450-1000nm), Single-mode across full spectrum
Synchronization / Connections	TTL (SMA); NIM (SMA) Under request
Beam Diameter	@ 470nm ≤ 2mm / @ 580nm ≤ 2,5mm / @ 725nm ≤ 3,5mm / @ 1150nm ≤ 5,5mm
Spatial Mode	< 1.2
Cooling	Thermoelectric cooler + air cooling
Power Requirements	220 V / 110V - 50/60 Hz
Operating Temperature	20 - 30 ºC
Storage Temperature	0 - 60 ºC
Dimensions	436x560x151 (WxDxH)

Applications

Microscopy (FRET, TIRF, CLSM…)
Absorption / Transmission / Reflection Spectroscopy
Lifetime Measurement
Optical Device Characterization
Metrology
Hyperspectral Imaging
