Supercontinuum Fiber Laser with Variable Frequency

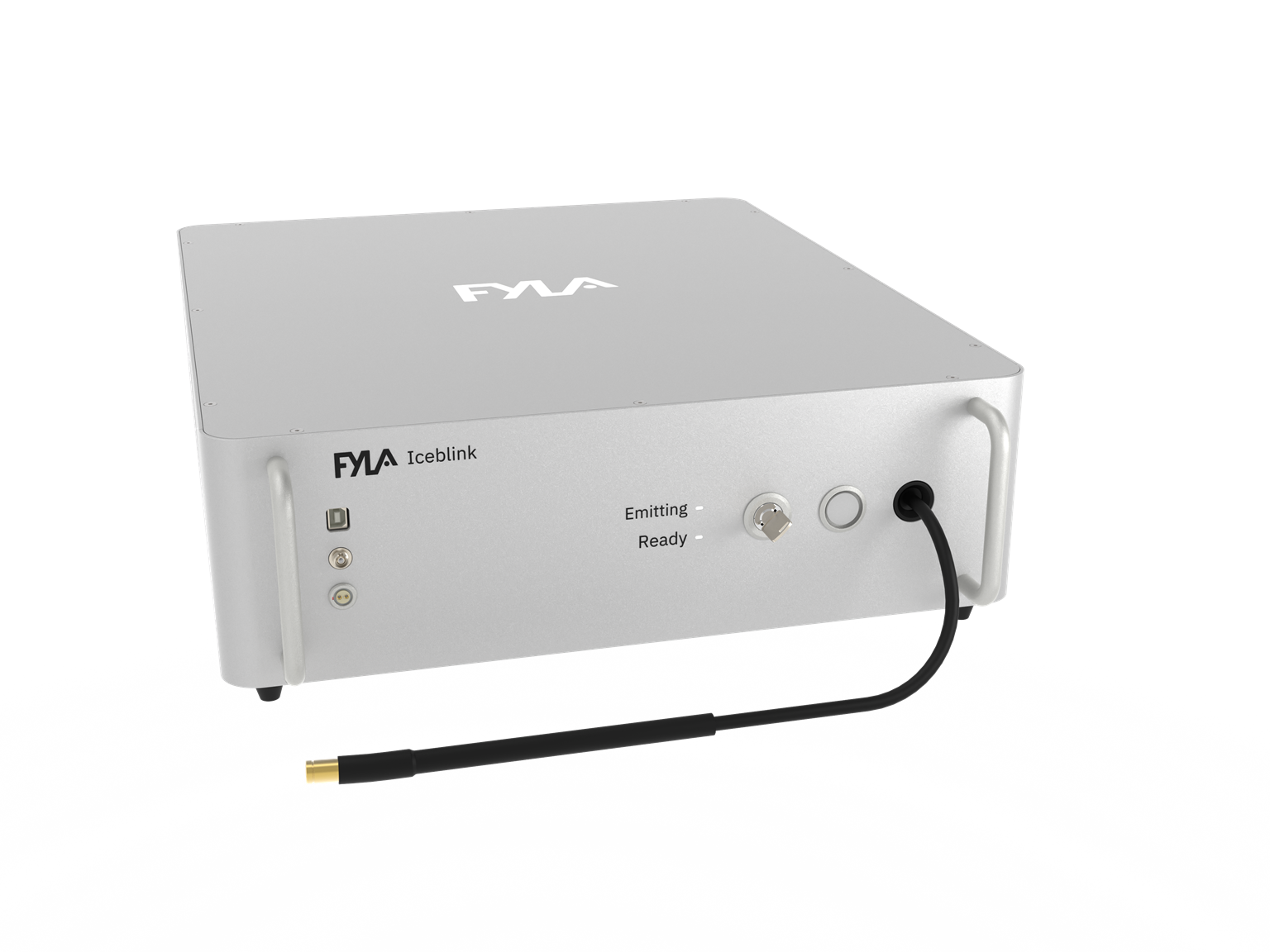

Iceblink with Variable Frequency from FylaThis supercontinuum fiber laser spans a spectral range of 450 – 2300 nm and is equipped with a pulse picker for enhanced control.
The pulse picker enables users to select specific laser pulses, allowing for adjustable repetition rates and tailored light output.
This feature makes the Iceblink with variable frequency ideal for precise, time-sensitive applications. Its spatial coherence and broad spectrum makes it a strong alternative to traditional lamps, single-line lasers, LEDs, and ASE sources, supporting scientific and industrial uses like fluorescence lifetime imaging, time-resolved spectroscopy and other.
- SPECTRAL RANGE: 450*-2300 nm (*Customizable)
- AVERAGE POWER: >2 W @ 40 MHz (fundamental frequency)
- Visible Range (450-750 nm) Average Power:~ 100 mW @ 40 MHz
- Pulse duration: < 10 ps @ 1060 nm | < 650 ps full spectrum (estimated value)
- Tunable Pulse Repetition Rate**: 40 / 20 / 10 / 5/ 2,5 / 1 MHz / 500kHz*** (**Other values under request ***Minimun frequency)
- Outstanding Power Stability
Further information
Typical optical spectrum @ different pulse repetition rates
Specifications
Technical specifications
| Pulse duration | < 10 ps @ 1060 nm | < 650 ps full spectrum**** |
| Tunable Pulse Repetition Rate: ** | 40 / 20 / 10 / 5/ 2,5 / 1 MHz / 500kHz*** |
| Power Stability | <0,5 % (std. dev.) |
| Polarization | Unpolarized |
| Output Port | Single Mode / 1.0 m (customizable) |
| Optical Output | Collimated (in the range 450-1000nm), Single-mode across full spectrum |
| Synchronization / Connections | TTL (SMA); NIM (SMA) Under request |
| Beam Diameter | @ 470nm ≤ 2mm / @ 580nm ≤ 2,5mm / @ 725nm ≤ 3,5mm / @ 1150nm ≤ 5,5mm |
| Spatial Mode | < 1.2 |
| Cooling | Thermoelectric cooler + air cooling |
| Power Requirements | 220 V / 110V - 50/60 Hz |
| Operating Temperature | 20 - 30 ºC |
| Storage Temperature | 0 - 60 ºC |
| Dimensions | 436x560x151 (WxDxH) |
**Other values under request ***Minimun frequency ****Estimated value
Applications
- Microscopy (FRET, TIRF, CLSM…)
- Absorption / Transmission / Reflection Spectroscopy
- Lifetime Measurement
- Optical Device Characterization
- Metrology
- Hyperspectral Imaging

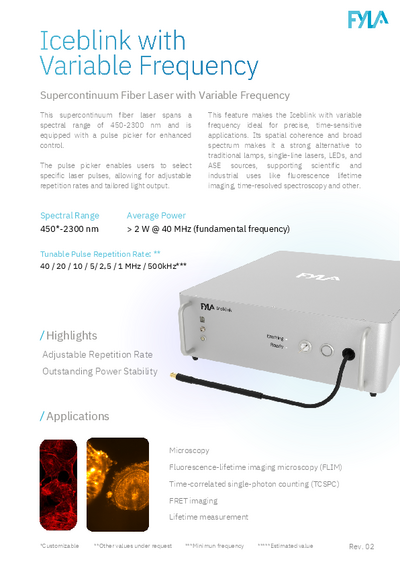

Downloads
