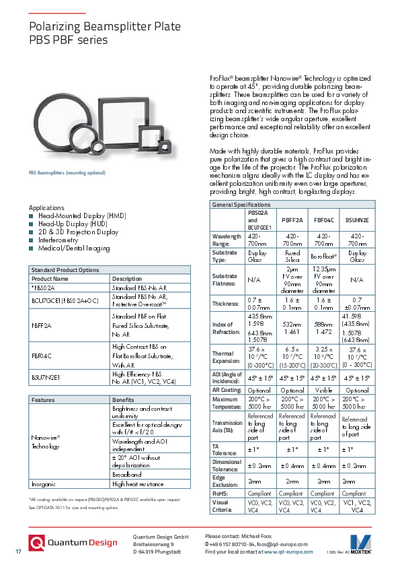

Wire-grid polarizing beamsplitter plate
PBS PBF Series from MoxtekProFlux beamsplitter Nanowire technology is optimized to operate at 45°, providing durable polarizing beamsplitters. These beamsplitters can be used for a variety of both imaging and non-imaging applications for display products and scientifi c instruments. The ProFlux polarizing beamsplitter’s wide angular aperture, excellent performance and exceptional reliability offer an excellent design choice.
- Optical flatness
- Excellent for optical design with f/# < f/2.0
- Wavelength and AOI independent
- Broadband
- High heat resistance
Further information
Made with highly durable materials, ProFlux provides pure polarization that gives a high contrast and bright image for the life of the projector. The ProFlux polarization mechanism aligns ideally with the LC display and has excellent polarization uniformity even over large apertures, providing bright, high contrast, long-lasting displays.
PBS02: general purpose
- Lower cost
- For many applications with less stringent imaging requirements
PBF02: improved flatness
Designed specifically for imaging applications where image quality is critical
- Thicker flat borofloat substrate
- starting material, 3λ/in flatness
- Improved wavefront of finished product
PBF-UF: ultra flat
Controlled cut part flatness < 2λ/in
- Ultra flat starting material
- Controlled wavefront of finished product
