Liquid cells & IR windows

From Specac

Transmission spectroscopy is one of the basic techniques for IR analysis. The sample and wavelength to be analysed determine the choice of window material, path length and window arrangement. The Omni cell is universally applicable for the analysis of liquids and mulls and can be transformed in just a few steps from a sealed cell to a demountable cell, or used as a Nujol cell.

Features
  • Universally applicable
  • Cost efficient and robust
  • Large selection of window materials
  • Fast assembly and window replacement

Further information

Liquids are analysed in transmission cells as a thin film between two IR windows. Type of cell, IR window materials and path length are determined by the sample and sample type to be analysed. Samples can be analysed neat or diluted with an appropriate solvent. For quantitative analysis, the sample is often analysed in a sealed cell with a known pathlength.

The selection of IR cell windows must take into account optical (transmission range), chemical and mechanical properties. We provide round and rectangular IR windows (with or without bore) in all common materials. Due to the hygroscopic nature of the materials of many IR cell windows and other accessories, storage in a dry atmosphere, such as a drying cabinet, is essential.

Downloads

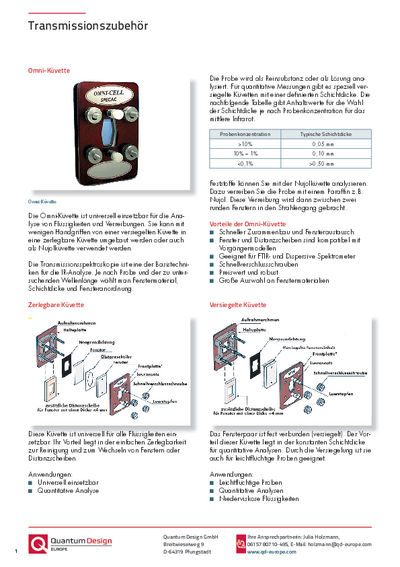

Flüssigkeitsküvetten Omni-System

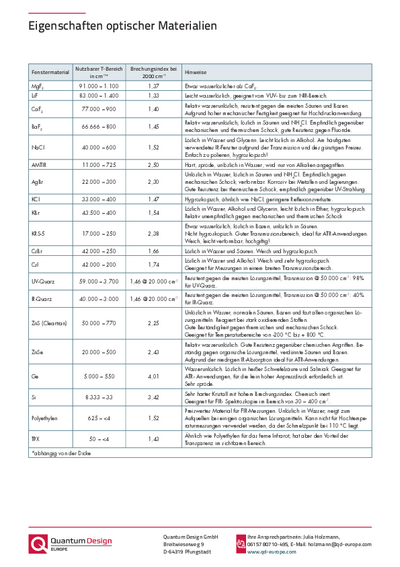

Eigenschaften optischer Materialien

Contact

Dr. Joachim Weiss
Dr. Joachim Weiss

Related products

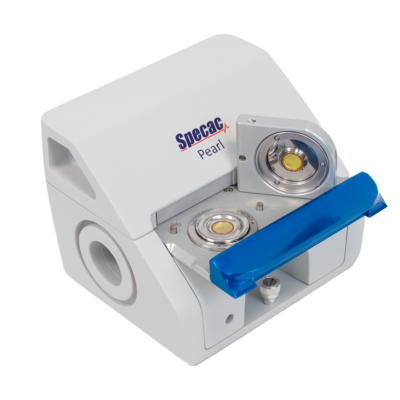

Liquid analyser
The Pearl is a liquid transmission accessory designed for laboratory spectroscopic analysis of liquid and viscous samples in the near and mid infrared,
Window polishing kit
Many IR windows become dull and their surface scratched after an extended period of use. This kit contains all of the essential materials required to clean and re-polish windows to within a flatness ...
