Pen-Ray Mercury UV Lamps for Laboratory and Industrial Applications

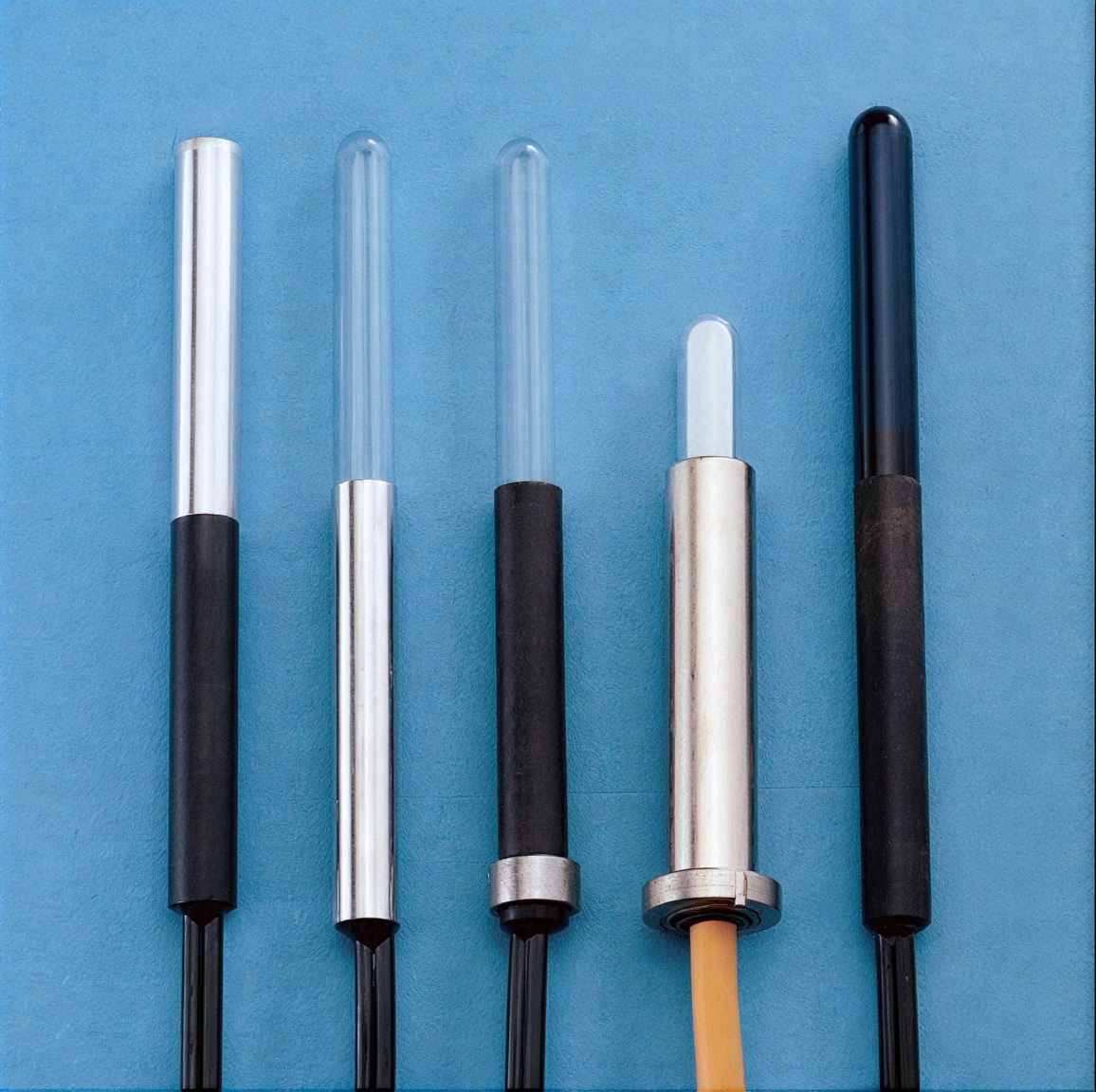

Pen-Ray Mercury Lamps are low-pressure cold cathode mercury UV lamps manufactured from double-walled quartz tubes. Each lamp is individually crafted to ensure high reliability, precise spectral line accuracy, and a long service life of over 3000 hours.
Their compact design and single-sided electrode configuration enable flexible integration into laboratory, industrial, medical, and forensic environments.
- Low-pressure cold cathode mercury UV lamps
- Double-walled quartz construction
- High spectral line accuracy
- Service life exceeding 3000 hours
- Available in multiple peak wavelengths
- Compact design with single-sided electrode configuration
Further information

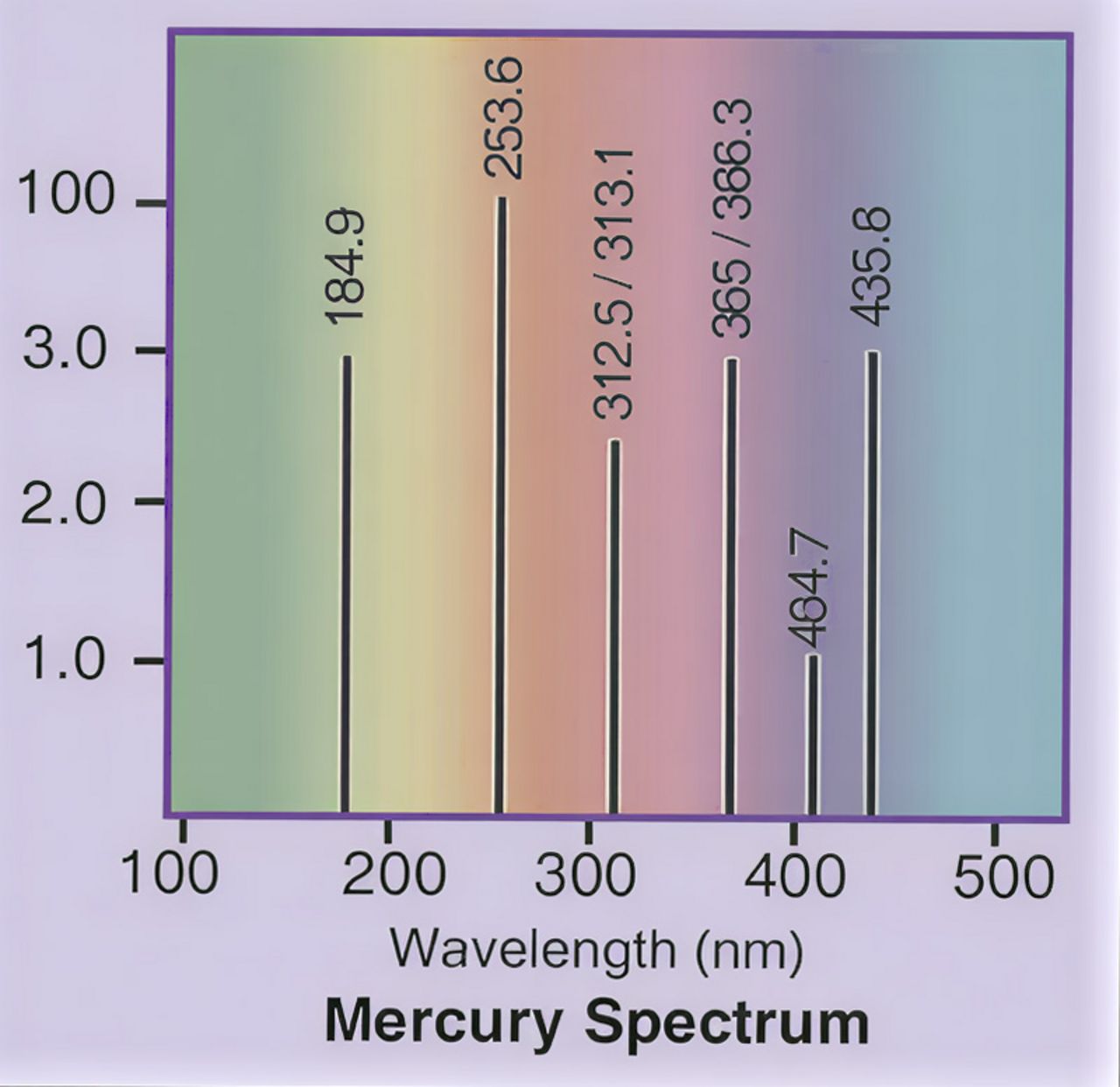

Pen-Ray UV light sources provide defined spectral emission lines for analytical, research, and industrial applications. Available peak wavelengths include:
254 nm (Shortwave UV)
302 nm (Midrange UV)
351 nm and 365 nm (Longwave UV, depending on model)
The lamps are available in different illuminated lengths, quartz diameters, and total lamp lengths, making them suitable for transillumination, photochemical processes, fluorescence excitation, curing applications, and optical measurements.
Standard Pen-Ray Version (Cable Connection – 254 nm)
Peak wavelength: 254 nm
Glass bulb dimensions: approx. 228 × 8.9 mm
Total length: approx. 295 mm
Cable length: approx. 1.4 m
Plug: Amphenol C016
Operating voltage: approx. 680 VAC
Operating current: approx. 26 mA
Minimum irradiance: 4 µW/cm² @ 25.4 mm distance (at 27 mA)
Available Peak Emissions
254 nm
302 nm
351 nm
Various illuminated lengths ranging from approx. 19 mm up to 228 mm are available. Quartz diameters and handle diameters differ depending on the model configuration.
Additional UVP Pen-Ray lamps with alternative sizes, wavelengths, and connection types are available upon request.
Specifications
Electrical Specifications (Standard Version)
Operating voltage: approx. 680 VAC
Operating current: approx. 26 mA
Minimum irradiance: 4 µW/cm² @ 25.4 mm
Power Supply Units
Input voltage: 230 VAC / 50 Hz or 115 VAC / 60 Hz
Output voltage: approx. 300 VAC
Output current: approx. 26 mA
Dimensions: approx. 154 × 123 × 93 mm (L × W × H)
Connection: Amphenol C016
QD Order Numbers
CPQ8401 – Pen-Ray Mercury Lamps
CPQ8402 – 230 VAC / 50 Hz Power Supply (Primary Current 1A)
CPQ8421 – 115 VAC / 60 Hz Power Supply (Primary Current 0.55A)
Applications
Criminology: Document examination, field clue detection, arson investigation, toxicology
Laboratory and Research: Fluorochemistry, DNA analysis, electrophoresis, TLC, mutation studies, nucleic acid visualization, photochemistry
Education: Fluorescence demonstration and analysis
Miscellaneous: E-Coli testing, archaeology, mineralogy, fluorescence photography
Gel electrophoresis
Gel viewing
Optical laboratory measurements
UV curing
Gradient sampling
Solar experimentation
Phototherapy and dermatological applications
Bacterial identification
Specimen staining
Chlorination and fluorochemistry
Pesticide analysis
Fluorescence photography
Non-destructive testing
Magnetic particle inspection
Clean room inspection
Leak detection (automotive)
Dermatology and cosmetology
Forensic applications and counterfeit detection

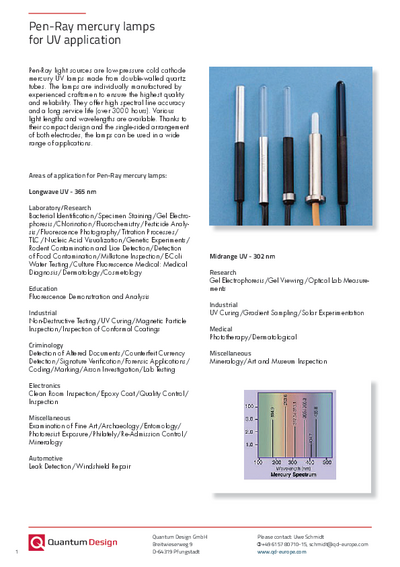

Downloads
