QCM-D accessories and consumables

For the E-series instruments from QSense there are several modules to combine QCM-D with other techniques such as electrochemistry, ellipsometry and microscopy. Additionally 40 different sensor surfaces are available.

Applications

Combination of QCM-D with other measuring techniques: Ellispometry, Electrochemistry and Microscopy
Humidity module for measuring swelling or deswelling of layers with different relative humidity
ALD module for reduced or enhanced pressure

Downloads

Modules

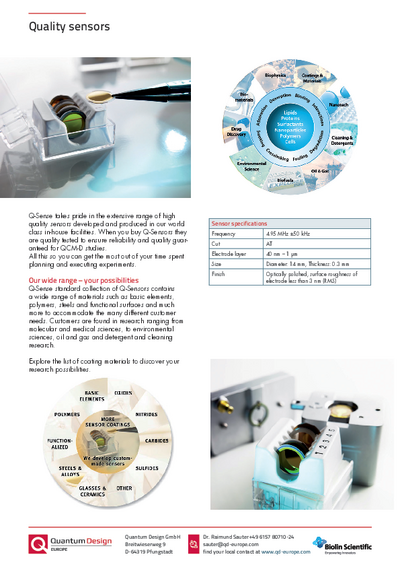

Quality sensors
Consumables
Acoulyte for Nanoplasmonic Spectroscopy

Contact

Dr. Raimund Sauter
Dr. Raimund Sauter

Related products

Flexible quartz crystal microbalance system
The Explorer  from QSense is a compact design QCM-D for one flow module, holding one sensor. It is temperature controlled and samples are introduced by using a peristaltic pump included in the system. ...
Four-channel quartz crystal microbalance system
The Analyzer from QSense can measure four samples at the same time: it´s chamber platform holds four flow modules for higher sample throughput. It is temperature controlled and samples are introduced ...
Fully automated quartz crystal microbalance system
This high-end QCM-D surface analysis equipment is an intuitive instrument and software platform that senses mass change, layer thickness, binding and molecular orientation at the nano-scale. It´s ...
