Single reflection diamond ATR - Golden Gate
From SpecacThe Golden Gate Diamond ATR unit continues to set new standards in ATR Technology. Due to its hardness and chemical resistance, the solid Type IIa diamond, metal-bonded into a tungsten carbide mount, enables the analysis of a board spectrum of samples, from hard solids to corrosive liquids.
A robust pressure device with sapphire anvil and integral torque mechanisms ensures exceptionally high, repeatable pressure and provides superior optical contact between sample and diamond. This ensures high sensitivity and repeatability of measurements.
- The most robust diamond ATR accessory on the market
- High sample throughput - no sample preparation required
- Hard, inert sapphire pressure anvil
- Modular structure with numerous options
- Special versions:
- Heatable,
- Low-temperature,
- Reaction chamber,
- Analysis of super critical fluids
Further information
The solid Type IIa diamond features an angle of incidence of 45° and a size of 2 mm x 2 mm. Due to the large sample contact surface, extremely wide samples (max. 8 cm in width) such as plastic panels can be analysed. The low aperture enables the analysis of very small samples, even micro samples such as individual fibers or particles. The completely enclosed design of the unit prevents contamination of the transfer optics and enables purging with gas.
Heatable Golden Gate ART
Offering the same benefits as the Golden Gate standard ATR unit this heatable version additional enables heating up to 200 °C, and up 300°C in the high-temperature version. Only the diamond mounted in tungsten carbide is heated.
Reaction Cell Golden Gate ART
The Reaction Cell Golden Gate ART enables the analysis of liquids under extreme conditions of temperatures up to 200 °C and pressures up to around 200 bar. The volume of the sample area is 28 ml, its material is stainless steel. A water cooling jacket prevents heating of the spectrometer sample area.
Super Critical Fluids Golden Gate ATR
This is a special version of the Golden Gate Diamond ART suitable for use at extreme pressures and temperatures. During the measurement, the sample is located in a small-volume stainless steel chamber enabling temperatures up to 300 °C and a pressure up to 340 bar (5000 psi).
Low Temperature Golden Gate ART
The Low Temperature Golden Gate ART enables measurements on solid samples and liquids in a temperature range from -150 °C to 80 °C. The system uses a thermally insulated dewar made of copper and stainless steel, which, in conjunction with an integral heating system, enables temperature to be varied continuously throughout the entire range.

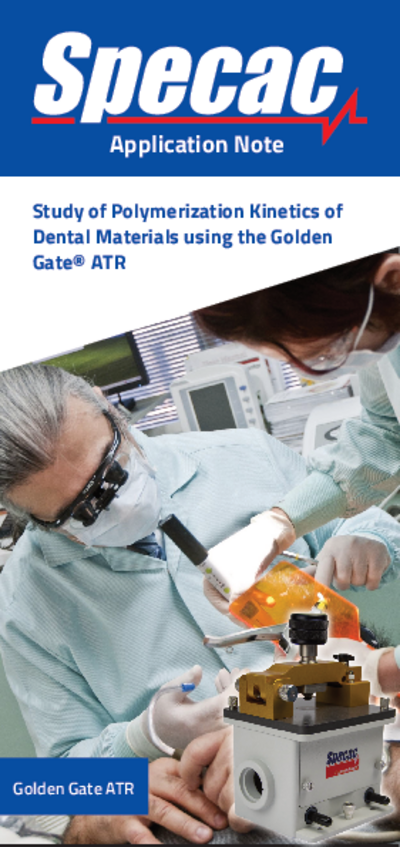

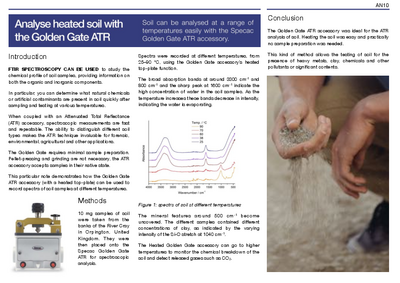

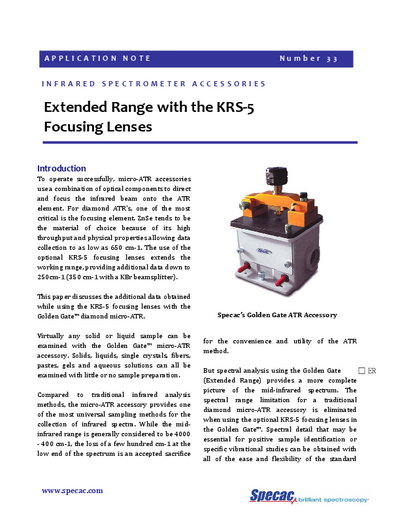

Downloads
