Collimated silicon drift x-ray detector
SDD from MoxtekThe 20 mm² silicon drift detector (SDD) is the latest x-ray detector in our product line. With an 8 μm beryllium window and vacuum encapsulation it’s ready to use for your XRF x-ray detector application.
- 8 μm DuraBeryllium window
- 500 μm diode thickness
- CMOS Preamplifier (CUBE)
- 2 Stage thermoelectric cooler (TEC)
- Multilayer collimator
- 10 position FFC connector
- Aluminum enclosure

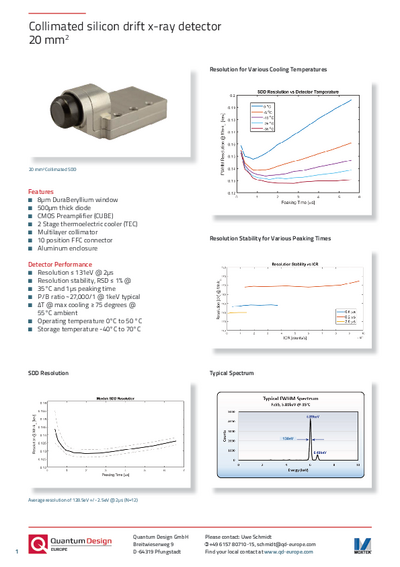

Downloads
