Colored glass filters

from Andover

Colored glass filters are unique in their ability to transmit a very broad band of light. The long wave pass type, often used as order/wavelength sorting filters, transmit the longer wavelengths and absorb the shorter wavelengths. The bandpass type, useful for enhancing the signal-to-noise ratio of illumination systems, transmit a broad band of energy while blocking the shorter and longer wavelengths. As with all optical components, colored glass filters should not be exposed to high temperatures or sharp temperature changes.

Features

Fabricated from high-quality optical filter glass
Excellent color consistency as well as sharp contrast
Both surfaces precision polished
Options span ultraviolet to infrared region

Specifications

General Specifications
Optical thickness	3 mm±0.5 mm
Mechanical thickness	add 0.8 mm for ring mount
Size tolerance	+0.0 mm/-0.25 mm
Surface quality	80/50 per MIL-M-13508
Max. Operating temperature	+100 °C
Transmitted wavefront (TWF)	1/4 wave per inch
Parallelism	30 arc seconds or better
Spectral data	stated as internal transmittance
Mechanical	Mounted
Optional	Mounted in threaded ring
Note: Corners are cropped on all 165 mm sq. parts unless otherwise requested

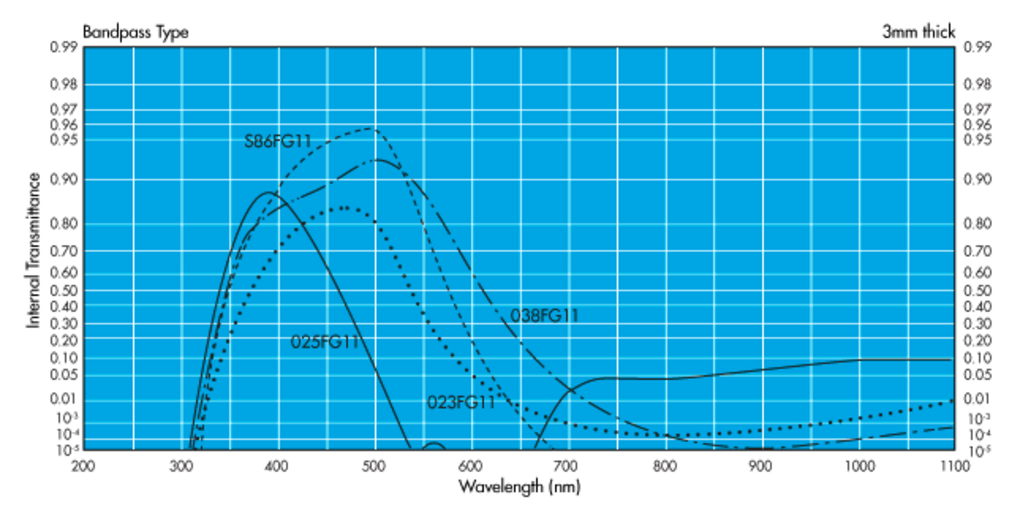

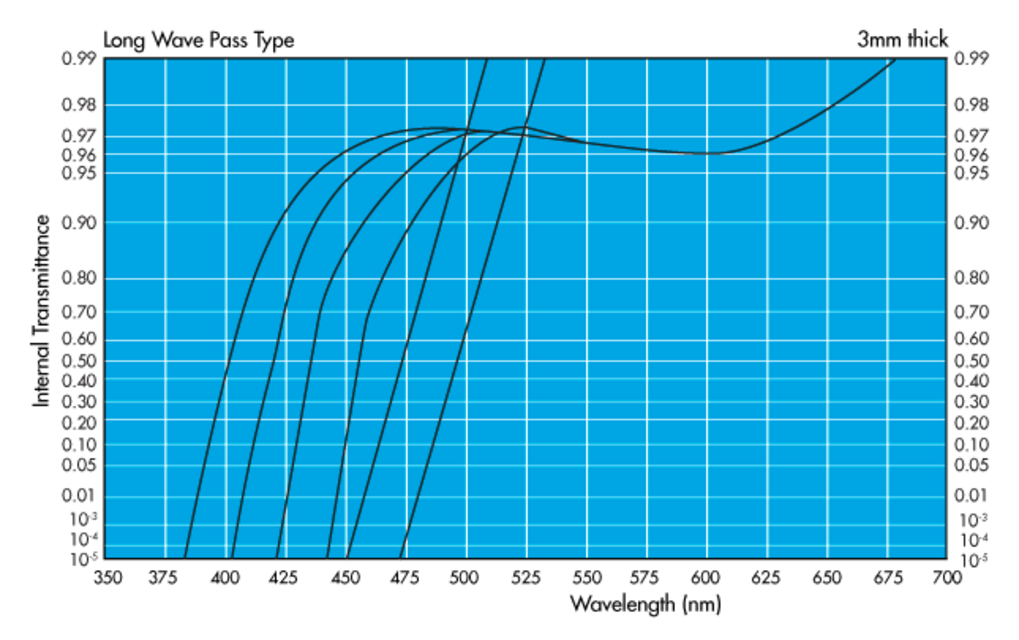

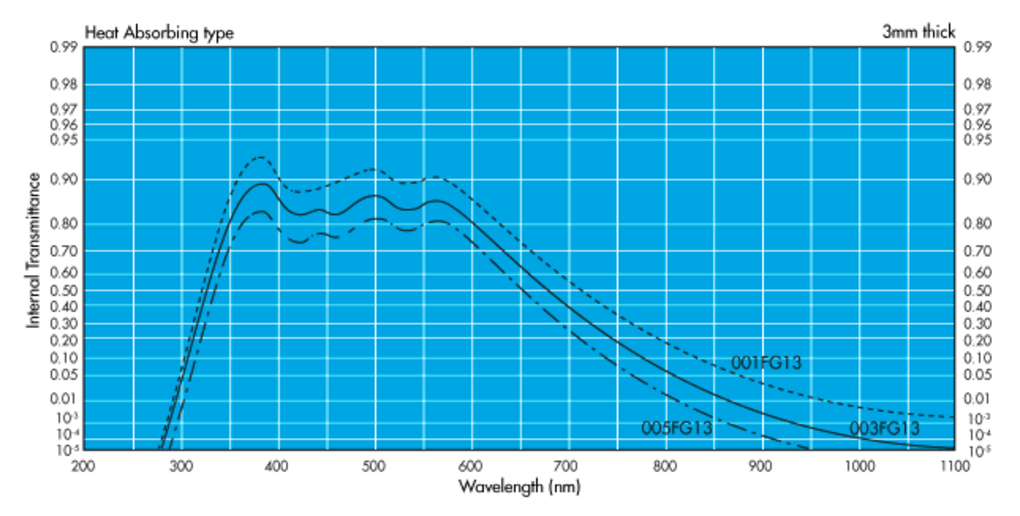

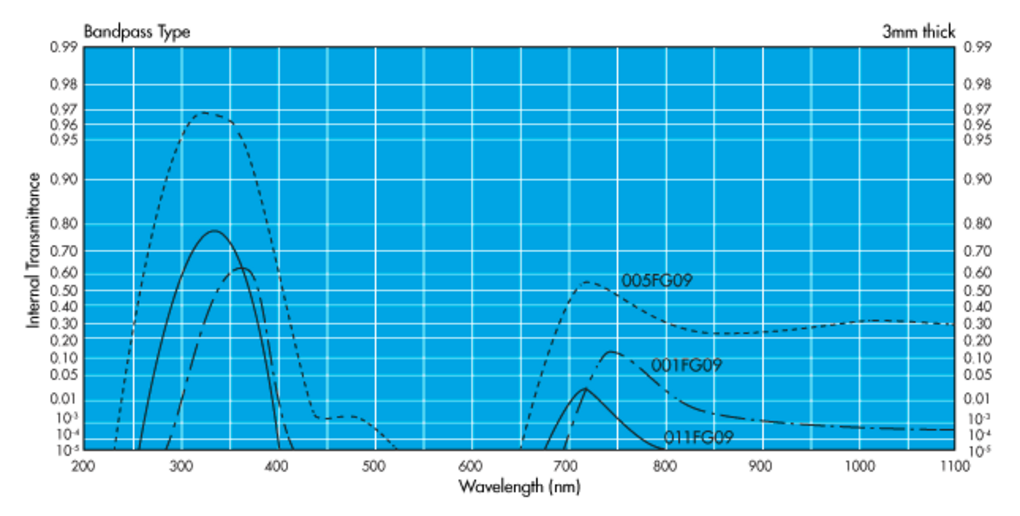

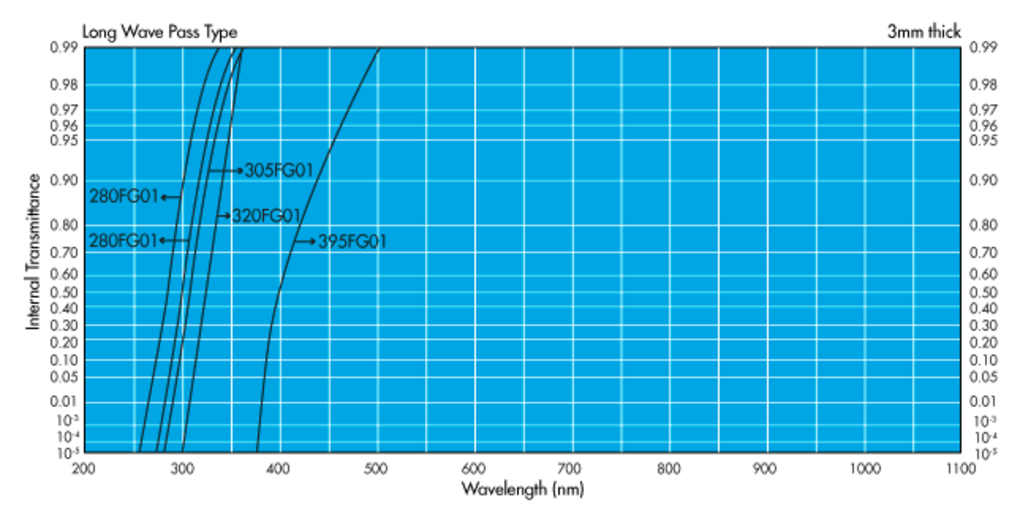

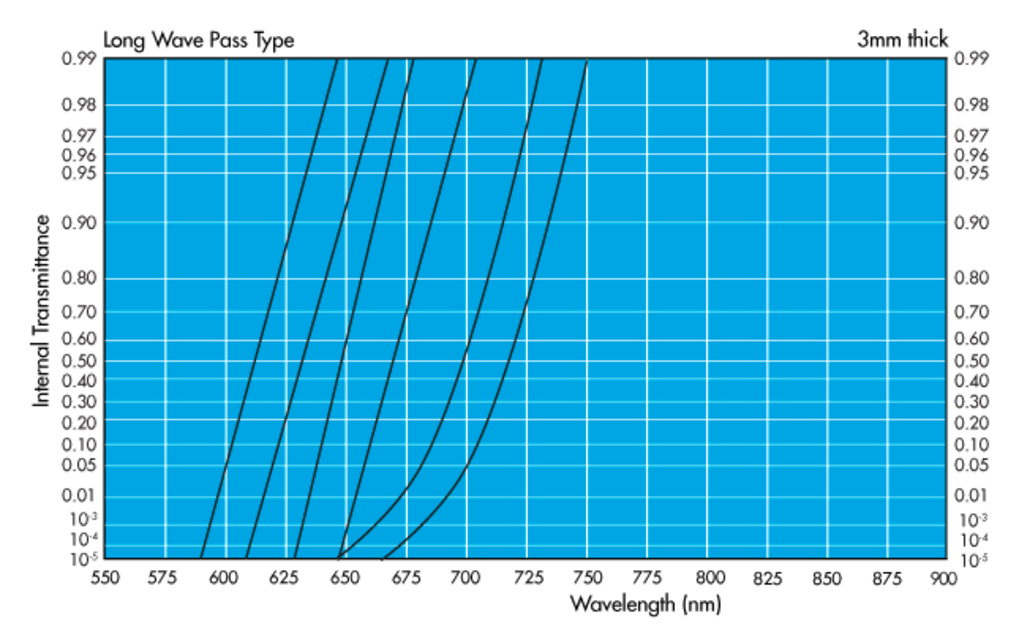

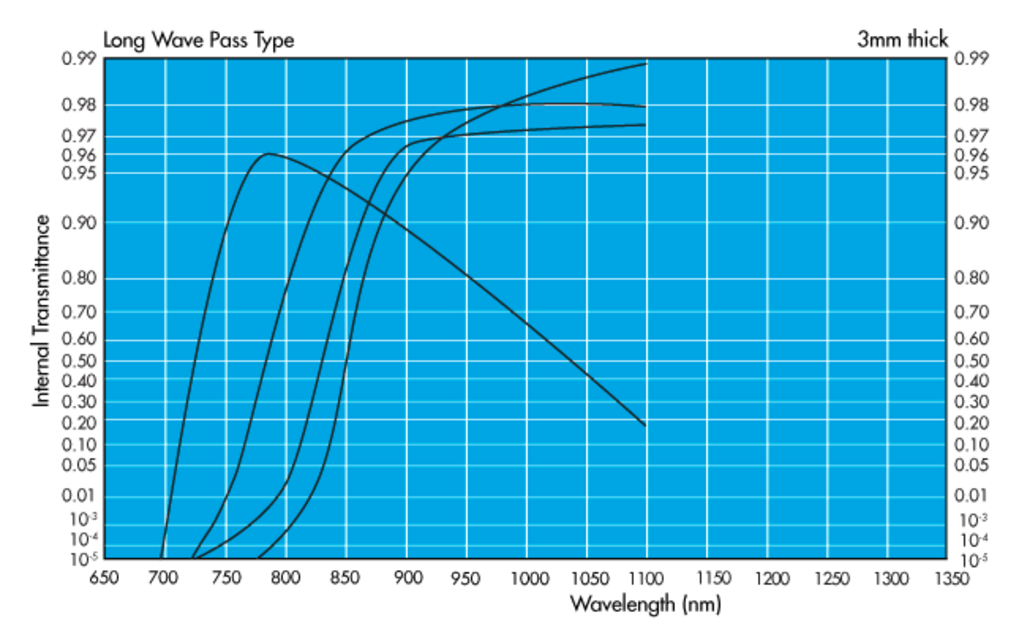

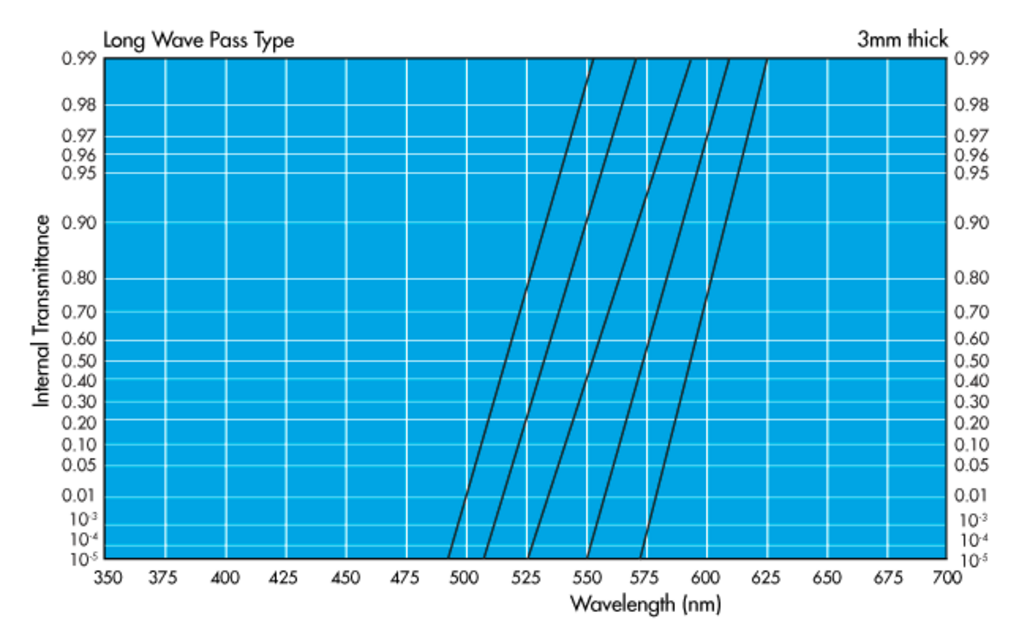

Three Class Types
Bandpass Type	Heat Absorbing Type	Long Wave Pass Type
Ultraviolet Transmitting Blue and Blue - Green	Infrared Absorbing	Near Infrared Transmitting Yellow Orange Ultraviolet Transmitting

We check all filter glass for striae, bubbles and inclusions using our tunable interferometer and custom-designed inclusion tester. These instruments detect minute defects, even in materials that do not transmit visible light.
