High-speed streaming cameras

from AOS Technologies

Streaming cameras take advantage of the enormous hard discs in computers or LapTops and do not need own memory. The streaming camera is connected by a standard interface like GigE or CoaXpress, but newly as well by USB3 with the computer. Recording lengths up to hours are possible. Sequences can easily be overwritten until an important event triggers the saving. Streaming cameras are meant for continuous image acquisition, if the time line of the event is not known. Therefore streaming cameras are the best tool for observation of long term processes where it is not possible to predict a problem or an incident.

Features
  • Portable high-speed streaming camera
  • Motion trigger
  • Streaming directly to RAM or HPD
Latest updates

Special offer AOS demo camera PROMON U750

Every year ... we turn over our inventory of demonstration cameras and offer you little-used high speed cameras at a greatly reduced price.

Further information

Product overview high-speed streaming cameras

  Name res @ fps Memory size
(WxHxL mm)
Features
Promon Scope G3 Twin

2048 x 1088 @ 85

640x 480 @ 560

up to 512 GB 50 x 50 x 62
  • up to 80 min. recording time
  • Batterie powered for up to 4 h mobility
  • Support for 2 camera heads
Promon U1000

1900 x 1200 @ 150

640x 480 @ 817

up to 2 TB 30 x 30 x 30
  • Cost effective
  • Small footprint
  • USB 3.0 powered
Promon U800

1280 x 1024 @ 210

640x 480 @ 804

up to 2 TB 30 x 30 x 30
  • Small footprint
  • long recording time
  • USB 3.0 powered

Promon U750

1280 x 1024 @ 203

640x 480 @ 751

up to 2 TB 30 x 30 x 30
  • Cost effective
  • Small footprint
  • USB 3.0 powered
Promon 501

2048 x 1088 x @ 85

640x 480 @ 565

up to 2 TB 55 x 54 x 54
  • Small form factor
  • Long cable length
  • GigE based connection
Promon 502

2048 x 1088 @ 170

640 x 480 @ 750

up to 2 TB 55 x 54 x 54
  • Small form factor
  • Long cable length
  • GigE based connection
Promon Streamer G1

1280 x 1024 @ 203

640 x 480 @ 751

up to 1 TB 108 x 72 x 188
  • All in one system
  • Standalone
  • Permanent installation
  • 4 camera versions
  Promon WRC

2048 x 1088 @ 80

1024 x 800 @ 200

up to 2 TB
  • Controller
  • SSD memory
  • Wireless operation
  • IP67



Models

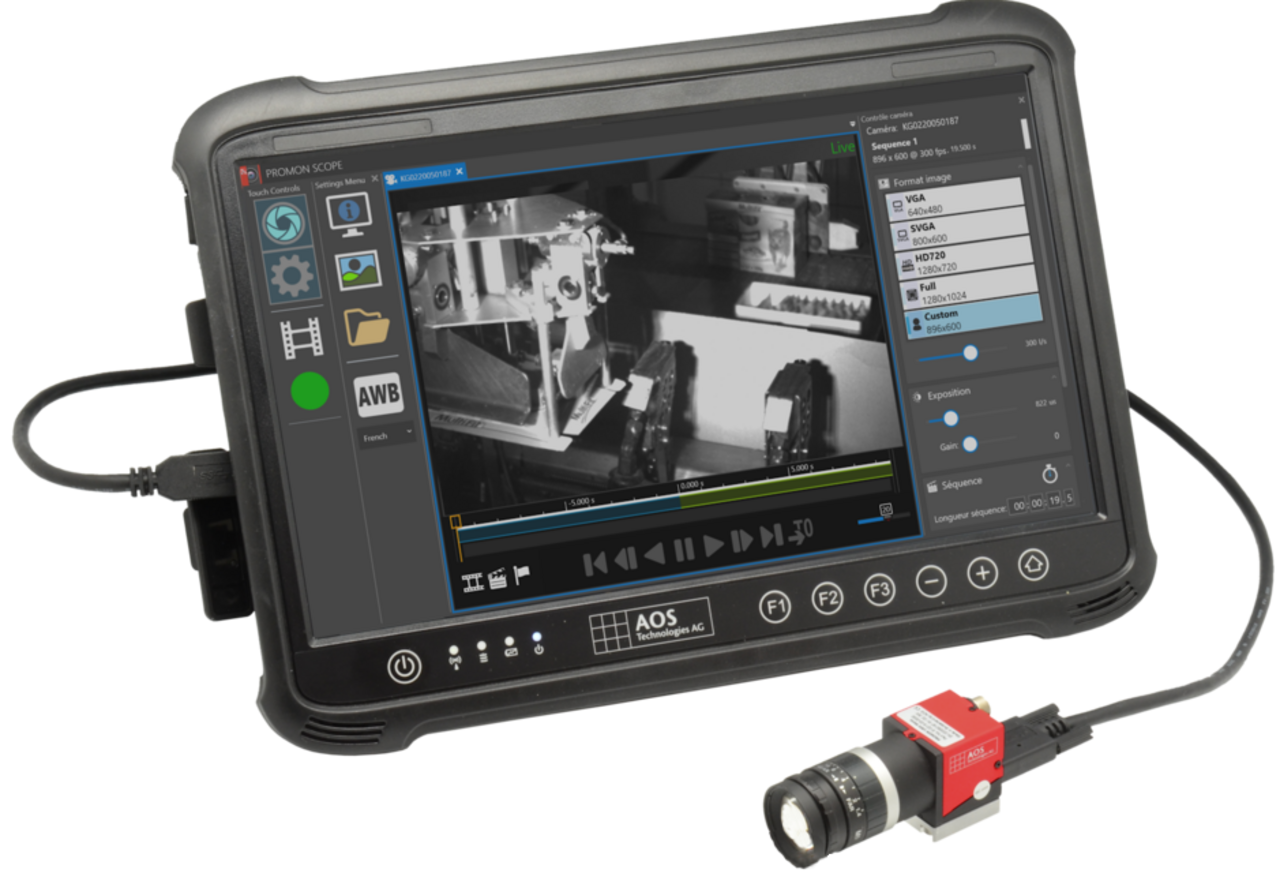

PromonScope G3 and G3 Twin

PromonScope G3 is a complete, simple, fully mobile high-speed camera system. Thanks to the new powerful built-in battery, Promon Scope can work up to 3 1/2 hours independent of mains power. A recording duration up to 40 minutes at a time on the inserted SSD is possible, with reduced resolution up to 80 minutes. The operation takes place on the 13.3" touch screen. The high-speed camera system Promon Scope G3 sets new standards for portable high-speed recorders. Promon Scope G3 is available with 2048x1088 pixels black/white or color detector, but also with the sensor with increased NIR sensitivity. The system is designed for mobile applications and is controlled with intuitive touchscreen operation - thanks to the robust design even in demanding environmental conditions. Nevertheless, Promon Scope G3 is not only intended for industry but also for fast, constantly changing applications in research. The high image resolution makes even the smallest details of the process visible and enables detailed analysis of the process. In addition, external analog signal sources such as voltages, circuit states or PLC signals can be recorded synchronously and displayed in video.

PromonScope G3 Twin extends the standard system to a 2 camera system in which one camera functions as master and one camera as slave. The cameras can be synchronized or work independently, but can be operated and read out together by the PromonScope touchpad. This makes it possible to analyze an event simultaneously in 2 places.

  • 2048 x 1088 Pixel
  • up to 3000 Hz ROI
  • Light sensitive
  • Light weight and robust (2.5 kg /5.5lbs)
  • The camera is streaming images to the built-in hard disc for almost 80 minutes
  • A Li-battery allows the use of the camera for almost 3 hours
  • 13“ touch screen
  • Twin camera solution available
Promon U1000

PROMON U1000 runs a modern 2.3 MegaPixel detector with 1900 x 1200 active pixels at a full frame rate up to 150 frames/sec. When reducing the resolution frame rates up to 3145 fps stunning data rates are possible as well.

Promon U-Series cameras are cost effective, easy to use and easy to install cameras for industrial and scientific applications.

  • 1900 x 1200 pixels resolution
  • 150 fps
  • USB3 based camera that takes images with 640x480 pixels @ 817 frames/sec
  • Stunning data rate of 200+fps
  • Available in color / monochrome
  • Installation of Imaging Studio Software on as many PC as required
  • Records directly into PC RAM and HD
Promon U800

The Promon U800 uses a CMOS detector with 1280x1024 active pixels for high-speed recording. The miniature camera achieves a frame rate of 210 Hz in full frame. In the so-called windowing mode, fewer pixels are read out and higher frame rates of up to over 1680 frames per second are achieved. The smaller image windows can be flexibly selected and adapted to the application situation. Thanks to the high-intensity detector, there is little need to illuminate the scene to be captured. The Promon U800 comes with the powerful but easy-to-use control and readout software Imaging Studio V4.
Using streaming, minute or hour-long sequence recordings are stored directly to a hard drive. The Promon U800 is housed in a small case, making it easy to attach to frames in process. The sensor is known for high image quality and sharpness.

Promon U750
  • 1280 x 1024 pixels
  • Trigger external or in the image
  • > 3000 fps in ROI
  • USB3 based miniature camera that takes images with 640x480 pixels @ 750 frames/sec
  • Stunning data rate of 200+fps
  • Available in color / monochrome
  • Piloted by the AOS Imaging Studio V4 software
  • Records directly into PC RAM and HD
Promon 502

Promon 502 Data transfer via a GigE Interface direct to the RAM of the PC or directly on a laptop. Promon 502 takes advantage of a high resolution detector with 2048*1088 pixels. Frame rate at full image is 170 Hz but can be higher for smaller ROIs.
Promon 502 is a high speed camera that connects directly to your PC via Gigabit Ethernet link. The camera offers stunning data rates, one example: 1280 x 720 pixels up to 250 fps. Configurable resolution and frame rates the camera can record with maximum resolution of 2048 x 1088 pixels (covering also HD-TV Format) @ up to 170 fps. Promon 502 cameras are available in monochrome, color or as NIR (near infrared) version. Due to a sophisticated image algorithm in the camera image frame rates are achieved not seen before over a standard Gigabit Ethernet link.

  • Data transfer is via a GigE Interface direct to the RAM of the PC or directly on a LapTop
  • High resolution detector with 2048*1088 pixels
  • Frame rate at full image is 170 Hz but can be higher for smaller ROIs
  • Offers stunning data rates, one example: 1280 x 720 pixels up to 250 fps
  • Configurable resolution and frame rates the camera can record with maximum resolution of 2048 x 1088 pixels (covering also HD-TV Format) @ up to 170 fps
  • Available in monochrome, color or as NIR (near infrared) version
  • Due to a sophisticated image algorithm in the camera image frame rates are achieved not seen before over a standard Gigabit Ethernet link
Promon 501

Promon 501 Data transfer via a GigE Interface direct to the RAM of the PC or laptop. Frame rate at full image is 170 s. In a smaller Window of Interest frame rate can be as high as 7400 fps. Promon 501 connects directly to your PC or laptop via Gigabit Ethernet link. The camera offers stunning data rates, one example: 560 frames per second with 640 x 480 pixels. Configurable resolution, integration time and frame rates the camera can record image formats such as 1280 x 720 pixels @ up to 125 fps and up to 7400 fps at a reduced resolution. Intuitive yet powerful software helps you to control the data acquisition. PROMON 501 cameras are available in monochrome, color or as NIR (near infrared) version. Due to a sophisticated image algorithm in the camera image frame rates are achieved not seen before over a standard Gigabit Ethernet link. Easy export of image data to the most common movie formats is just another one of the many features of the software.

  • 2048 x 1088 pixel
  • 7400 Hz in ROI
  • Trigger externally or in the image
  • Data transfer via a GigE Interface direct to the RAM of the PC or LapTop
  • Frame rate at full image is 170 s
  • In a smaller window of interest frame rate can be as high as 7400 fps
  • Connects directly to your PC or LapTop via Gigabit Ethernet link
  • Offers stunning data rates, one example: 560 frames per second with 640 x 480 pixels
  • Configurable resolution, integration time and frame rates the camera can record image formats such as 1280 x 720 pixels @ up to 125 fps and up to 7400 fps at a reduced resolution
  • Intuitive yet powerful software helps you to control the data acquisition.
  •  Available in monochrome, color or as NIR (near infrared) version
  •  Due to a sophisticated image algorithm image frame rates are achieved not seen before over a standard Gigabit Ethernet link
  • Easy export of image data to the most common movie formats is just another one of the many feat

Applications

High speed imaging
Process control
Research on dynamic events
Military
Maintenance
Biology

Downloads

Promon Scope G3 & G3 twin

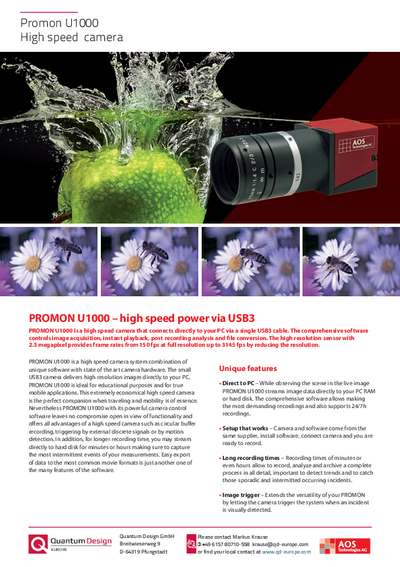

Promon U1000

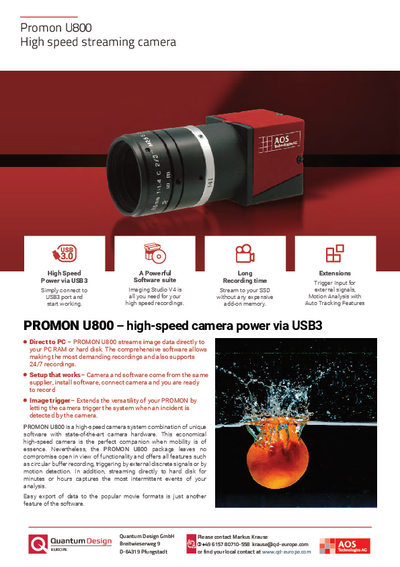

Promon U800

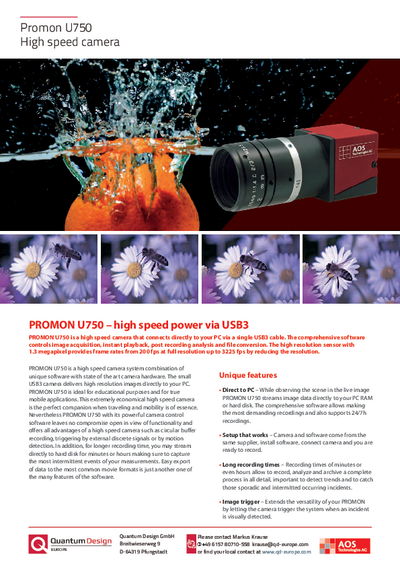

Promon U750
Promon 502
Promon 501
Software Imaging Studio v4
