Uncooled NIR camera without window

Bobcat 320 TE0 WL from Xenics

Bobcat 320 TE0 WL is a part of the Bobcat family using uncooled sensors. The Bobcat 320 TE0 WL is based on a Xenics in-house developed, uncooled InGaAs detector with a 320 x 256 pixel resolution and 20 µm pixel pitch.The camera has a GigE Vision interface, 400 Hz maximum frame rate and even higher frame rates in windowing mode.
The Bobcat 320 TE0 WL comes with a windowless uncooled detector, specifically targeting laser beam analysis and laser wavefront sensing applications as it avoids interferences between glass and sensor. This results in main applications like laser based applications, Laser Beam Profiling or Wavefront Sensing.

Features
  • Uncooled
  • Windowless
  • Low cost, small and light weight
  • High speed 400 Hz
  • SDK for own programming available

Further information

Bobcat 320 TE0 WL offers integration times in the range of  0,5 to 4 ms running the read out mode ITR (integrate then read). This camera can be triggered or can trigger thought a configurable SMA connector. Bobcat 320 TE0 WL is controlled and read out by our software Xeneth, As option a SDK and a LabVIEW SDK are available.
Because of the standard lens mount a large number of c-Mount-lenses is available.

Applications

Integration
Laser Beam Profiling
Wavefront Sensing
Optics

Downloads

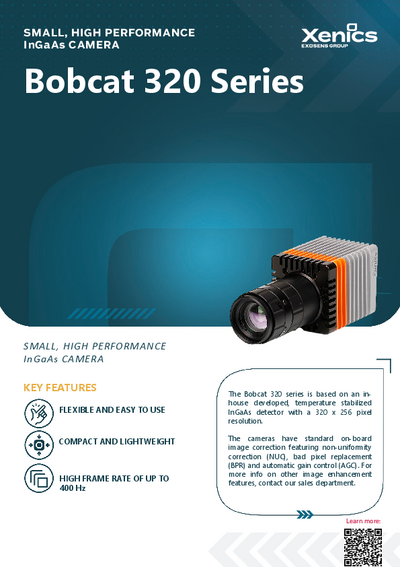

Bobcat 320 series
Bobcat 320 TEO WL series
