Cooled InGaAs sCMOS camera

C-RED series for 0.9 µm to 2.2 µm from Oxford Instruments Andor

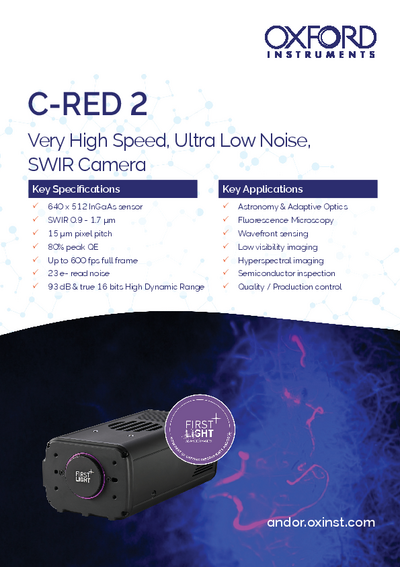

C-RED 2 is a revolutionary ultra high speed low noise Short Wave Infrared camera, able to run at 600 fps with less than 30 electrons readout noise. To achieve this performance, C-RED 2 integrates a 640 x 512 InGaAs PIN Photodiode detector with 15 μm pixel pitch for high resolution, which embeds an electronic shutter with integration pulses shorter than 5 μs.

C-RED 2 offers dark optimization for long exposure times up to 60 seconds and High Dynamic Range: 93 dB and true 16 bits. Designed for high-end low light SWIR applications, C-RED 2 offers new opportunities for science, research and industry.

Features

640 x 512 InGaAs sensor
SWIR 0.9 - 1.7 μm
15 μm pixel pitch
70% QE, wavelength from 0.9 to 1.7 μm
Up to 600 fps full frame

Specifications

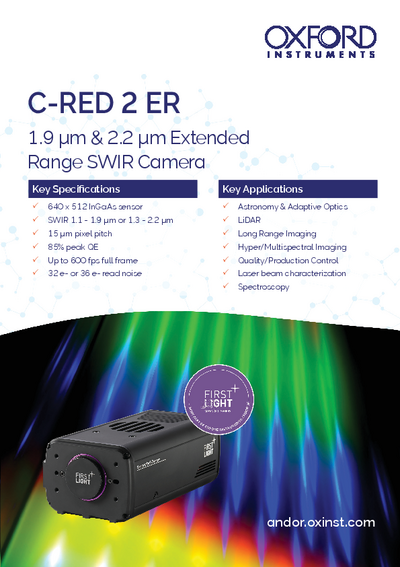

Cooled InGaAs sCMOS camera for 0.9 µm to 2.2 µm

	C-RED 2	C-RED 2 Extended Range
Spectral Range	0.9 to 1.7 µm	1.1 to 1.9 µm / 1.3 to 2.2 µm
Resolution	640 x 512	640 x 512
Pixel Size	15 µm	15 µm
Cooling	-40°C	-40°C / -55°C
Quantum Efficiency	>70%	>70%
Dark Current	<600 e-/p/s	11 ke-/p/s or 110 ke-/p/s
Read Noise	<30 e-	<50 e- / <40 e-
Dynamic Range	46667:1 (HDR)	30000:1 / 37500:1
Interface	USB3.1 and CameraLink	USB3.1 or CameraLink
Frame Rate at Full Resolution	602 fps	602 fps
