Mercury xenon light sources (HgXe)

Mercury xenon light sources have high output power in the UV and VIS range with characteristic lines in the UV, VIS and NIR. Their small, very bright arcs have significant advantages when used with condenser optics. They produce either a highly collimated beam or a small, focused spot of high intensity.

Features
  • Different power classes from 100 to 1000 W
  • Wavelength range: 200 - 2500 nm
  • High radiance in UV and VIS
  • Highly collimated or focused output beams
  • Good approximation to a point light source

Further information

We offer six models that cover the range from 100 to 1000 W. The models include almost everything needed for proper operation (lamp housing, power supply, cables and adapters). Only select lamp and condensing optic according to your requirements to complete.

Of course, you can also choose from our wide range of accessories to adapt the light sources to your specific measuring task.

Models

100 W Mercury xenon light sources
LS100Hg(Xe)

Complete system (convection cooled) including lamp housing, power supply, cables and adapters needed for a proper operation.
Just select lamp bulb and condenser according to your requirements to complete.

To be operated with following lamp:

LSB710 100 W Hg(Xe) lamp
To be operated with 1 of following condensors:

LSC105 25 mm Ø, f/1,2,  UV quartz
LSC115 35 mm Ø, f/1,3, UV quartz
LSC110 35 mm Ø, f/1,0, UV quartz
LSC116 35 mm Ø, f/1,3, glass
LSC111 35 mm Ø, f/1,0, glass
The optional rear reflector can be used to maximize output power
LSC121 Rear reflector
150 W Mercury xenon light sources
LS150Hg(Xe)

Complete system (convection cooled) including lamp housing, power supply, cables and adapters needed for a proper operation.
Just select lamp bulb and condenser according to your requirements to complete.

To be operated with following lamp:

LSB711 150 W Hg(Xe) lamp
To be operated with 1 of following condensors:

LSC105 25 mm Ø, f/1,2,  UV quartz
LSC115 35 mm Ø, f/1,3, UV quartz
LSC110 35 mm Ø, f/1,0, UV quartz
LSC116 35 mm Ø, f/1,3, glass
LSC111 35 mm Ø, f/1,0, glass
The optional rear reflector can be used to maximize output power
LSC121 Rear reflector
200 W Mercury xenon light source
LS200Hg(Xe)

Complete system (fan cooled) including lamp housing, power supply, cables and adapters needed for a proper operation.
Just select lamp bulb and condenser according to your requirements to complete.

To be operated with 1 of following lamps:

LSB720 200 W Hg(Xe) lamp
LSB721 200 W Hg(Xe (ozone free)
To be operated with 1 of following condensors:

LSC205 25 mm Ø, f/1,2,  UV quartz
LSC215 35 mm Ø, f/1,3, UV quartz
LSC210 35 mm Ø, f/1,0, UV quartz
LSC216 35 mm Ø, f/1,3, glass
LSC315 50 mm mm Ø, f/1,3, UV quartz
LSC310 50 mm mm Ø, f/1,0, UV quartz
LSC311 50 mm Ø, f/1,0, glass
The optional rear reflector can be used to maximize output power
LSC321 Rear reflector
350 W Mercury xenon light source
LS350Hg(Xe)

Complete system (fan cooled) including lamp housing, power supply, cables and adapters needed for a proper operation.
Just select lamp bulb and condenser according to your requirements to complete.

To be operated with following lamp:

LSB730 350 W Hg(Xe) lamp
To be operated with 1 of following condensors:

LSC205 25 mm Ø, f/1,2,  UV quartz
LSC215 35 mm Ø, f/1,3, UV quartz
LSC210 35 mm Ø, f/1,0, UV quartz
LSC216 35 mm Ø, f/1,3, glass
LSC315 50 mm mm Ø, f/1,3, UV quartz
LSC310 50 mm mm Ø, f/1,0, UV quartz
LSC311 50 mm Ø, f/1,0, glass
The optional rear reflector can be used to maximize output power
LSC321 Rear reflector
500 W Mercury xenon light source
LS500Hg(Xe)

Complete system (fan cooled) including lamp housing, power supply, cables and adapters needed for a proper operation.
Just select lamp bulb and condenser according to your requirements to complete.

To be operated with following lamp:

LSB740 500 W Hg(Xe) lamp
To be operated with 1 of following condensors:

LSC205 25 mm Ø, f/1,2,  UV quartz
LSC215 35 mm Ø, f/1,3, UV quartz
LSC210 35 mm Ø, f/1,0, UV quartz
LSC216 35 mm Ø, f/1,3, glass
LSC315 50 mm mm Ø, f/1,3, UV quartz
LSC310 50 mm mm Ø, f/1,0, UV quartz
LSC311 50 mm Ø, f/1,0, glass
The optional rear reflector can be used to maximize output power
LSC321 Rear reflector
1000 W Mercury xenon light source
LS1000Hg(Xe)

Complete system (fan cooled) including lamp housing, power supply, cables and adapters needed for a proper operation.
Just select lamp bulb and condenser according to your requirements to complete.

To be operated with 1 of following lamps:

LSB750 1000 W Hg(Xe) lamp
LSB751 1000 W Hg(Xe) lamp (ozone free)
To be operated with 1 of following condensors:

LSC410 35 mm Ø, f/1,0, UV quartz
LSC615 50 mm Ø, f/1,3, UV quartz
LSC510 50 mm Ø, f/1,0, UV quartz
LSC511 50 mm Ø, f/1,0, UV glass
The optional rear reflector can be used to maximize output power
LSC621 Rear reflector

Applications

Fluorescence
Phosphorescence
Luminescence
Photochemistry, Photolithography
Absorbance and Reflectance
Solar simulation

Downloads

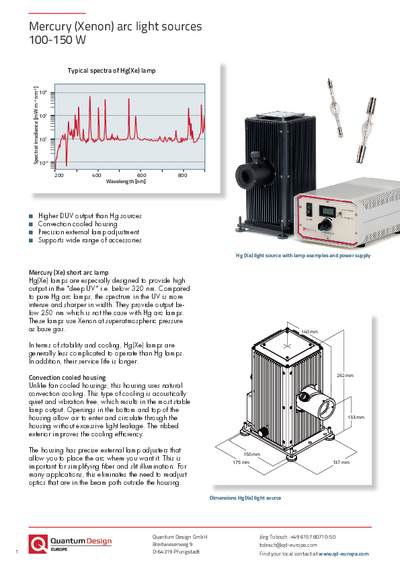

100-150 W Hg(Xe) arc light sources

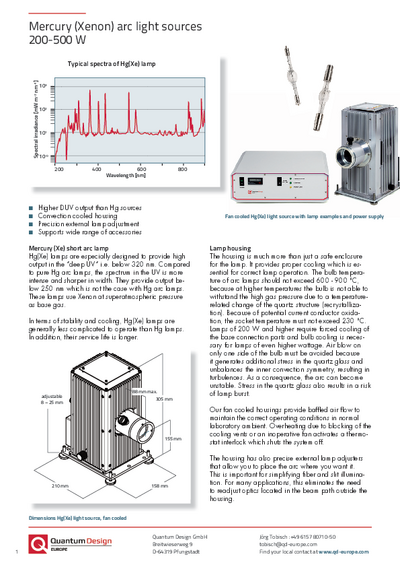

200-500 W Hg(Xe) arc light sources

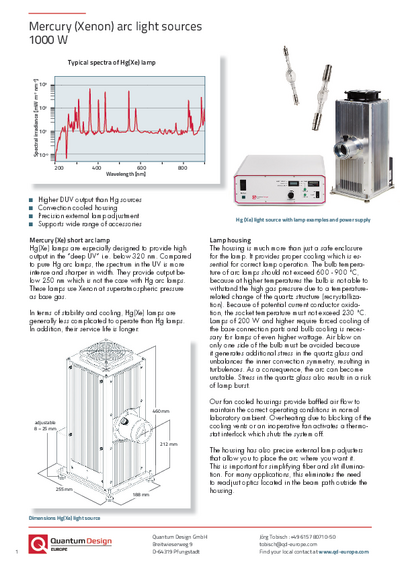

1000 W Hg(Xe) arc light source
Hg(Xe) Lamp specification
Light source accessories
UV safety considerations

Downloads

Things to know

All you need to know about arc lamps
Lamp spectra and irradiance
Choosing the right source
Choosing the right focusing lens
Choosing the right condenser
Estimating source output
Reflectance, transmittance & refractive index
Distribution of luminance & beam uniformity
