Xenon light sources (Xe)

Xenon arc light sources have high output power in the UV and VIS range with some lines in the NIR. Their small, very bright arcs have significant advantages when used with condenser optics. They produce either a highly collimated beam or a small, focused spot of high intensity.

Features
  • Different power classes from 75 to 1200 W
  • Wavelength range: 200 - 2500 nm
  • High radiance in UV and VIS
  • Highly collimated or focused output beams
  • Good approximation to a point light source
  • Very well suited for solar simulation

Further information

We offer six models covering the range from 75 to 1200 W. The models include almost everything needed for proper operation (lamp housing, power supply, cables and adapters).
Only select lamp and condensing optic according to your requirements to complete.

Of course, you can also choose from our wide range of accessories to adapt the light sources to your specific measuring task.

Models

75 W Xenon arc light sources
LS75Xe

Complete system (convection cooled) including lamp housing, power supply, cables and adapters needed for a proper operation.
Just select lamp bulb and condenser according to your requirements to complete.

To be operated with 1 of following lamps:

LSB510 75 W Xe lamp
LSB511 75 W Xe lamp (ozone free)
To be operated with 1 of following condensors:

LSC105 25 mm Ø, f/1,2,  UV quartz
LSC115 35 mm Ø, f/1,3, UV quartz
LSC110 35 mm Ø, f/1,0, UV quartz
LSC116 35 mm Ø, f/1,3, glass
LSC111 35 mm Ø, f/1,0, glass
The optional rear reflector can be used to maximize output power
LSC121 Rear reflector
150 W Xenon arc light source
LS150Xe

Complete system (convection cooled) including lamp housing, power supply, cables and adapters needed for a proper operation.
Just select lamp bulb and condenser according to your requirements to complete.

To be operated with 1 of following lamps:

LSB520 150 W Xe lamp
LSB523 150 W Xe lamp (ozone free)
LSB522 150 W Xe lamp UV (ozone generating)
To be operated with 1 of following condensors:

LSC105 25 mm Ø, f/1,2,  UV quartz
LSC115 35 mm Ø, f/1,3, UV quartz
LSC110 35 mm Ø, f/1,0, UV quartz
LSC116 35 mm Ø, f/1,3, glass
LSC111 35 mm Ø, f/1,0, glass
The optional rear reflector can be used to maximize output power
LSC121 Rear reflector
300 W Xenon arc light source
LS300Xe

Complete system (fan cooled) including lamp housing, power supply, cables and adapters needed for a proper operation.
Just select lamp bulb and condenser according to your requirements to complete.

To be operated with 1 of following lamps:

LSB531 300 W Xe lamp
LSB530 300 W Xe lamp (ozone free)
LSB532 300 W Xe lamp UV (ozone generating)
To be operated with 1 of following condensors:

LSC205 25 mm Ø, f/1,2,  UV quartz
LSC215 35 mm Ø, f/1,3, UV quartz
LSC210 35 mm Ø, f/1,0, UV quartz
LSC216 35 mm Ø, f/1,3, glass
LSC315 50 mm mm Ø, f/1,3, UV quartz
LSC310 50 mm mm Ø, f/1,0, UV quartz
LSC311 50 mm Ø, f/1,0, glass
The optional rear reflector can be used to maximize output power
LSC321 Rear reflector
450 W Xenon arc light source
LS450Xe

Complete system (fan cooled) including lamp housing, power supply, cables and adapters needed for a proper operation.
Just select lamp bulb and condenser according to your requirements to complete.

To be operated with 1 of following lamps:

LSB542 450 W Xe lamp (ozone free)
LSB541 450 W Xe lamp UV (ozone generating)
To be operated with 1 of following condensors:

LSC410 35 mm Ø, f/1,0, UV quartz
LSC615 50 mm Ø, f/1,3, UV quartz
LSC510 50 mm Ø, f/1,0, UV quartz
LSC511 50 mm Ø, f/1,0, UV glass
The optional rear reflector can be used to maximize output power
LSC621 Rear reflector
1000 W Xenon arc light source
LS1000Xe

Complete system (fan cooled) including lamp housing, power supply, cables and adapters needed for a proper operation.
Just select lamp bulb and condenser according to your requirements to complete.

To be operated with 1 of following lamps:

LSB550 1000 W Xe lamp
LSB551 1000 W Xe lamp (ozone free)
To be operated with 1 of following condensors:

LSC410 35 mm Ø, f/1,0, UV quartz
LSC615 50 mm Ø, f/1,3, UV quartz
LSC510 50 mm Ø, f/1,0, UV quartz
LSC511 50 mm Ø, f/1,0, UV glass
The optional rear reflector can be used to maximize output power
LSC621 Rear reflector
1200 W Xenon arc light source
LS1200Xe

Complete system (fan cooled) including lamp housing, power supply, cables and adapters needed for a proper operation.
Just select lamp bulb and condenser according to your requirements to complete.

To be operated with following lamps:

LSB553 1200 W Xe lamp
To be operated with 1 of following condensors:

LSC410 35 mm Ø, f/1,0, UV quartz
LSC615 50 mm Ø, f/1,3, UV quartz
LSC510 50 mm Ø, f/1,0, UV quartz
LSC511 50 mm Ø, f/1,0, UV glass
The optional rear reflector can be used to maximize output power
LSC621 Rear reflector

Applications

Fluorescence
Phosphorescence
Luminescence
Photochemistry, Photolithography
Absorbance and Reflectance
Solar simulation

Downloads

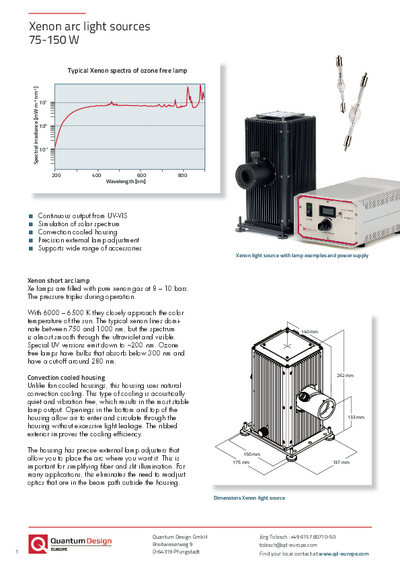

75-150 W Xenon arc light source
300 W Xenon arc light source

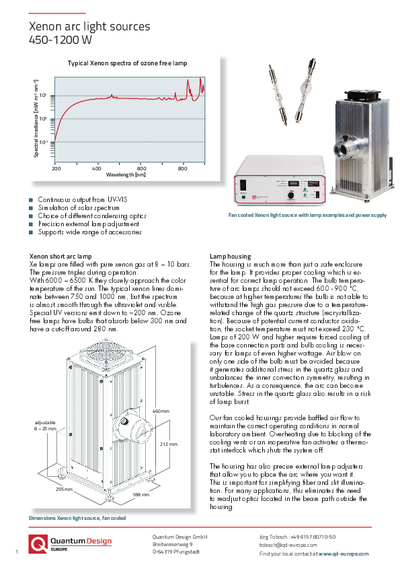

450 - 1200 W Xenon arc light source
Xe Lamp specification
Light source accessories
UV safety considerations

Downloads

Things to know

All you need to know about arc lamps
Lamp spectra and irradiance
Choosing the right source
Choosing the right focusing lens
Choosing the right condenser
Estimating source output
Reflectance, transmittance & refractive index
Distribution of luminance & beam uniformity
