Diamond compression cell & beam condensor

From Specac

Compression cells with diamond window are designed for analysis of micro solid samples for transmission. The sample to be analysed is placed between two diamond windows and compressed to the ideal thickness for transmission analysis by applying pressure from outside. For measurment, the cell is then placed in an IR microscope or in the microfocus 4x.beam condensor.

Features
  • Compression cell with 1.5 mm free aperture
  • Size: 76.2 mm x 50.8 mm x 14.3 mm
  • Beam condensor with ZnSe or KRS-5 lenses

Downloads

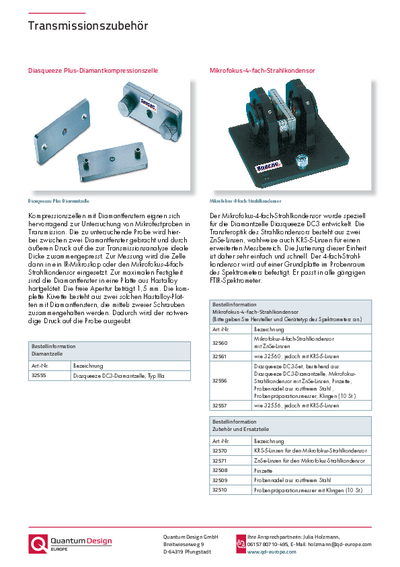

Diamantkompressionszellen & Strahlkondensor
