FTIR accessories: gas & solid cells

Transmission cells for measurement of solid specimens Apart from the traditional KBr powder pressing technology, a number of advanced methods are available for transmission spectroscopy. The ... more
Transmission cells for measurement of solid specimens Apart from the traditional KBr powder pressing technology, a number of advanced methods are available for transmission spectroscopy. The variable-temperature cell enables samples to be analysed in transmission over a temperature range from -190 °C to 250 °C . The electrical heating jacket is suitable for transmission measurements from room temperature to 250 °C. The high pressure/high temperature cell permits IR spectroscopic analysis at temperatures up to 800 °C and pressures up to 66 bar. Compression cells with diamond window are ideally suited to the analysis of micro solid samples. The cell is placed in an IR microscope or beam condenser for measurement. Gas cells & long-path gas cells Transmission cells with considerably higher path length are required for gaseous samples, due to their low density, and for trace analysis. As far as their construction is concerned, gas measurement cells are standard transmission cells offering the required path length. Long-path gas cells feature a compact design and are based on the White Cell principle, in which the effective path length amounts to several meters. This is achieved by means of three internal mirrors for multiple reflection of the IR light. Heated versions are available to avoid condensation or for analysis, e.g., of decomposition processes.
FTIR accessories: gas & solid cells - Window polishing kit
Window polishing kit

Many IR windows become dull and their surface scratched after an extended period of use. This kit contains all of the essential materials required to clean and re-polish windows to within a flatness ...


FTIR accessories: gas & solid cells - High-pressure high-temperature cell
High-pressure high-temperature cell

The high-pressure high-temperature cell enables IR spectroscopic analysis at temperatures up to 800 °C. The cell can be used at pressures from vacuum up to 66 bar and is also suited to the analysis of ...


FTIR accessories: gas & solid cells - Storm heatable 10 cm gas cell
Storm heatable 10 cm gas cell

The heatable gas cell allows the analysis of gaseous samples at temperatures from RT to 250 °C.

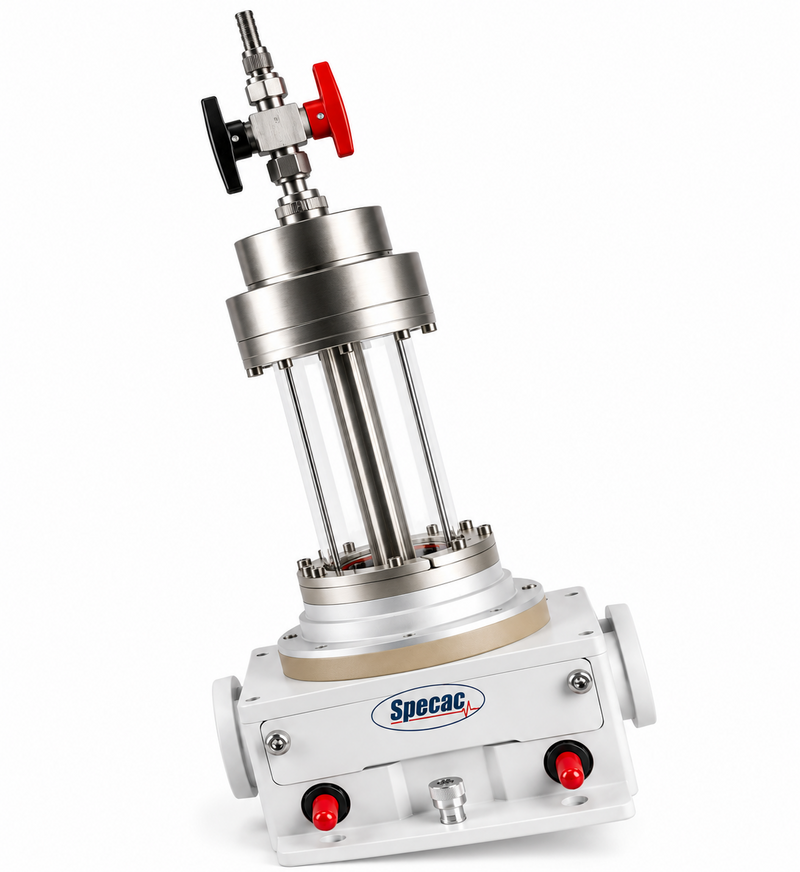

FTIR accessories: gas & solid cells - Long-path gas cells
Long-path gas cells

Long-path gas cells work according to the White principle, in which IR light is reflected several times within a three-mirror-system in order to increase the path length. The cells are available in ...


FTIR accessories: gas & solid cells - 5 & 10 cm gas cells
5 & 10 cm gas cells

The 5 & 10 cm gas cell are designed for analysis of gaseous samples under standard temperature conditions.


FTIR accessories: gas & solid cells - Variable temperature cell for temperatures from -190 °C to 250 °C & accessories
Variable temperature cell for temperatures from -190 °C to 250 °C & accessories

The variable temperature cell enables solid and liquid samples to be analysed for transmission over a temperature range from -190 °C up to 250 °C. Cooling of the cell is achieved by means of a cooling ...


FTIR accessories: gas & solid cells - Heating jackets for transmission measurements on liquids and solids & accessories
Heating jackets for transmission measurements on liquids and solids & accessories

The electric heating jacket is designed for transmission measurements on liquids and solids from RT to 250 °C. The heating jacket accomodates a liquid cell (static or flow) or a solid sample holder. ...


FTIR accessories: gas & solid cells - Diamond compression cell & beam condensor
Diamond compression cell & beam condensor

Compression cells with diamond window are designed for analysis of micro solid samples for transmission. The sample to be analysed is placed between two diamond windows and compressed to the ideal ...
