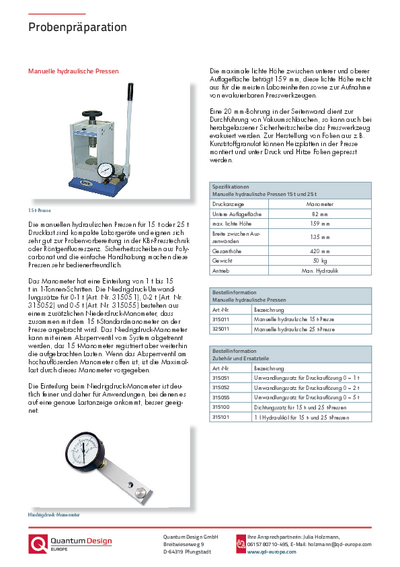

Laboratory presses with 15- and 25- ton loads
From SpecacOur robust manual hydraulic laboratory presses with 15 and 25 t load configurations are essential for producing KBr pellets and the preparation of XRF samples. They have been in the market for decades and are well established. Thanks to polycarbonate safety guards these user-friendly presses are easy to use and safe in operation.
- Proven for decades
- Safety guard
- Adjustable pressure valve
- Low-pressure conversion kits
Further information
The maximum height between lower and upper pressing face is 159 mm which is enough even for large press die assemblies. A 20-mm hole in the side panel can be used as feedthrough for vacuum hoses. This way press dies can also be evacuated when the safety guard is down. The integrated pressure control valve is adjustable to protect the press die from excessive pressure.
Heating plates can be used in the press to prepare thin polymer films under pressure and heat.
An additional optional low-pressure gauge that is mounted together with the 15-t standard gauge enables low-pressure applications at 0-1, 0-2 and 0-5 tons. The measuring increments of the low-pressure gauge are much smaller and thus better suited for applications where a precise load display is a must.
